New Tech Planetary Concrete Mixing Plant for Superior Construction Projects

Product Description

Product Description
Features

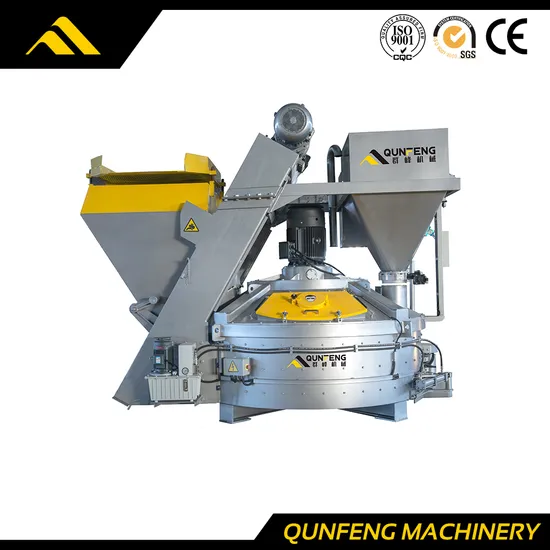

The QMP Series Planetary Concrete Mixer is engineered to deliver exceptional performance in all types of high-quality concrete mixing, including hard, semi-hard, and plastic concrete. Beyond concrete, this versatile mixer is perfect for blending glass, ceramics, refractory materials, and much more, making it an indispensable tool for a variety of industries.
1) Our specially designed mixing device ensures faster and more uniform mixing, while the robust mixing blade boasts enhanced wear resistance for prolonged durability;
2) The integration of flexible couplings and an optional fluid coupler safeguards the drive system against overload shocks, enhancing the system's reliability;
3) Our innovative gearbox design optimally distributes power to the mixing device, ensuring efficient operation with minimal noise, even in demanding production environments;
4) The large-size access door simplifies maintenance and cleaning, providing easy access to the interior components;
5) Optional high-pressure cleaning devices and water content testers offer added convenience and precision;
6) From selecting the most suitable model to customizing for specific applications, along with comprehensive maintenance and service, we offer full-spectrum technical support and assurance, ensuring your needs are met every step of the way.

Items	QMP250	QMP330	QMP500	QMP750	1000	1500	2000	2500	3000
Filling Volume (L)	375	500	750	1125	1500	2250	3000	3750	4500
Feeding Capacity (Kg)	600	790	1200	1800	2400	3600	4800	6000	7200
Compacted Concrete (L)	250	330	500	750	1000	1500	2000	2500	3000
Mixing Power (kW)	11	15	18.5	30	37	55	75	90	110
Mixing Star/Mixing Blade (Qty)	1×2	1×2	1×2	1×3	2×2	2×2	3×2	3×3	3×3
Side Scraper/Discharge Scraper (Qty)	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharging Power (kW)	Pneumatic Discharging	2.2	2.2	2.2	3	3	4	4	4
Weight (Kg)	1500	2000	2500	3500	5500	6500	8500	10500	11000
