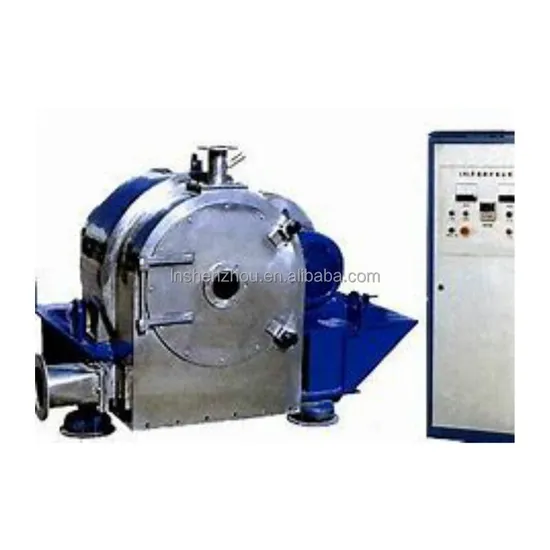

Small Salt Separator Worm Screen Scroll Centrifuge Machine Industrial Sea Salt Centrifuge

Product Description

Small Salt Separator Worm Screen Scroll Centrifuge Machine industrial sea salt centrifuge Performance and Use: REYES horizontal screen scroll centrifuge has the advantages of large production capacity, good solid phase dehydration, low energy consumption and light weight. Widely used in chemical, food, pharmaceutical and mining industries, and is suitable for the separation of solid-phase suspensions containing coarse crystals and short fibers. Especially suitable for separating suspension of easy dehydration and high concentration. SEA SALT CENTRIFUGE MAIN FEATURES 1. Strong pertinence to materials, the crystal size is between 0.05-10mm 2. Continuous operation, Screw unloading, Large production 3. The solid phase has low moisture content, good washing effect and high separation efficiency 4. Dedicated filter screen, material optional, filter screen thickness up to 0.5mm, longer service life 5. Stepless speed regulation of drum speed 6. Simple and reliable lubrication 7. Compact structure, easy operation and maintenance 8. Safety protection: speed detection, oil-free protection, motor overload and overheat protection, spiral zero differential protection.
LWL series has hundreds of cases in the waste salt treatment industry, including sodium chloride, sodium sulfate, ammonium chloride, ammonium sulfate, ferric chloride, and ferrous chloride. In addition, we have rich experience in plant extraction (tea, ginkgo, iron powder, kudzu root, hemp leaves, etc.), magnesium sulfate, copper sulfate, sodium gluconate, sodium metabisulfite, marine snowmaking, and other industries. Welcome customers from related industries to inquire. The improvements made by REYES in ammonium sulfate, ammonium chloride, ammonium thiocyanate, sodium chloride and other waste 1. The feeding pipe device is improved, the cloth is more uniform, and the equipment operation is more stable;
2. The lubrication system is improved, the lubrication is more adequate and reasonable, and the bearing weight is increased; 3. Improve the bearing sealing system and adopt labyrinth oil seals to prevent mother liquid from entering the lubrication system; 4. The drum spiral is treated with nitriding and wear-resisting, and the service life is longer. 5. The discharging system is improved, and a scraper device is added to prevent the silo from accumulating. LWL Series Screw Screen Centrifuge has been successfully used in the following:

Adipic Acid	Potash	Rock Salt	Date Stones
Salt Cake	lon Excgange Resin	Sodium Nitre	Polystyrene Alcohol
Arsenic Triazole	Sodium Chloride	Sodium Perborate	Sodium Thiosulphate
Ah-salt	Anth Racene	Nylon Chips	Copper Sulphate
Naphthenic Sulfonic Acid Ester	Iron Sulphate Hepta Hydrate	Hops From Dichlorc Methare	Ammonium Thiosulphate
Greaves	Sodium Chlorate	Citric Acid	Tarteric Acid
Aminiacetic Acid	Aspirin	Oxalic Acid	Crystal Soda
Gun Powder	Lactose	Sodium Sulphate	Potash Alum
Regenerated Rubber	Sodium Formate	Polymethacrylate	Tin Sulphate
Ammonium Persulphate	Bisphenol	Sodium Sulphite	Dinitro Methylarlin
Gypsum	Managanese Sulphate	Polysyrene	Potash Solvent Residue
Silver Nitrate	Sodium Gliconate	Sodium Tetraborate	Trisodium
Ammonium Phosphate	Borax	Two Nitro Methylaniline	Extraction from Methanol
Urotropin	Methyl Cellulose	Disodium Phosphate	Potassium Bica Rbonate
Sodium Acetate	Sodium Metaborate	Potassium Lore	Zinc Sulphate
Ammonium Sulphate	Calcium Formiate	Potassium Chloride	Potassium Bichromate
Sodium Phosphate	Monosod lumphasphate	Polyvinyl Chloride	Potassium Pensuphate
Sodium Ca Rbonate	Sodium Nitrate	Potassium Sulphate	Fungal Mycel

Specification

Model	Drum Dia (mm)	Drum Length (mm)	Speed (r/min)	Factor	Feeding (m³/h)	Power (kw)
200	200	176	4000	1790	0.5-1.5	3
250	250	208	3500	1712	1-5	4
350	350	287	3000	1762	3-15	11
450	450	356	2600	1700	3-18	22
530	530	405	2200	1434	6-20	30
630	630	496	1850	1205	10-30	37
800	800	525	1500	1008	15-40	55
1000	1000	664	1000	560	20-50	90

Details
Structural Diagram The drum/screw of the centrifuge can be customized in different angles according to customer requirements.
Material selection:
The material of the part in contact between the centrifuge and the material can be selected from stainless steel (304, 316L, 2205,etc.), Hastelloy, titanium and other corrosion-resistant materials according to customer requirements. Configuration selection: Explosion-proof configuration, gas-liquid separation device at the discharge port, washing device, vibration and main bearing temperature monitoring protection, etc. The standard cone angle of 20° is suitable for the separation of most materials The 10° cone angle is suitable for separation processes that require heating and washing effects 0° barrel drum is suitable for the separation of ice crystals and filber derivatives WORKING PRINCIPLE Under full speed operation: continuous feeding, washing, dewatering, unloading and other technological operations of the suspension.
The suspension enters the spiral cavity from the feed pipe, and enters the drum through the nozzle at the bottom of the screw head near the bottom of the cone.
Under the action of the centrifugal force field, the liquid phase in the slurry is separated by the creen set on the rotating wall When going out, the solid particles are trapped in the drum; at the same time, the solid particles in the drum move from the small end of the drum to the big end of the drum under the action of centrifugal force and the differential speed between the spiral and the drum. During the movement, the centrifugal force increases rapidly due to the increase of the rotation diameter. The solid phase changes from the high moisture content solid phase when it initially enters to the low moisture content solid phase when it is discharged from the drum, thus realizing automatic and continuous solid and liquid phase separation. Packing & Delivery

---
