| US$8,000.00-10,000.00 | 1 Piece (MOQ) |

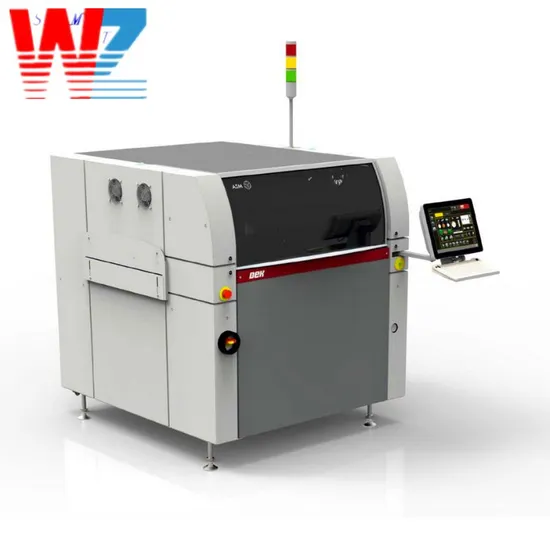

| Standard configuration | DEK NeoHorizon 03iX |
| Machine alignment capability | (cpk)** ±25 μm @ > 2.0 cpk, (±6 Sigma) |
| Wet print capability (cpk) | ±25 μm @ > 2.0 cpk, (±6 Sigma), AVS-zertifiziert |
| Standard cycle time | 8 seconds + process |
| Maximum printing surface | 510 mm (X) × 508.5 mm (Y) |
| Maximum PCB size | 620 mm (X) × 508.5 mm (Y) - Long Board |
| User interface Touchscreen | Touchscreen, keyboard and trackball,Instinctiv DEK V9 Software |
| Camera | DEK HawkEye® 750 digital camera with 2-way LED illumination |
| Squeegee adjustment | Motorized with squeegee pressure feedback |
| Stencil loading | Semi-automatic |
| Stencil alignment | Motorized (actuators); aligned on X- and Y-axis and rotation |
| ProFlow | Optional |
| Understencil cleaning | IUSC 300 mm/400 mm/520 mm |
| Technical documentation | Printed documents: User manual, installation instructions, circuit diagrams. Technical instructions and videos that explain all operating steps are preinstalled. |
| Compressed air supply | 5-8 bar at ~5 liters/minute |
| Power supply | 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz |
| Weight Approx. | 690 kg depending on selected options |
| Established in 2009, Shenzhen Wenzhan Technology Co., Ltd. has been committed to creating an efficient communication platform to better serve our customers. Our team consists of professional engineers with certifications from the original equipment manufacturers for over a decade. We are dedicated to prioritizing our customers' interests and providing top-quality equipment, accessories, and consumables, as well as technical support. To further reduce our customers' costs, we have established our own machining plant, ensuring ample inventory and competitive pricing. | 1. Professional pre-sales advice support 2. Excellent after-sales technical service 3. Flexible payment and return policy 4. One-stop solution for SMT Line 5. Sufficient stock and fast deliver |
| What services do you provide? We are a leading provider of SMT machinary and spare parts in Shenzhen China. We offer a full range of SMT products with OEM and ODM services available. |
| MOQ? One and mixed order are both welcomed. |
| What are your payment terms? Pay in full before shipment, either in one lump sum or in installments. |
| What is your delivery time? We typically deliver within 1 week after receiving full payment. |
| What if I encounter problems with the machine after receiving it? If you face any issues with the machine during the warranty period, we will send you free replacement parts. |
| How can I purchase a machine from you? The process is simple and flexible: Consult with us online or via email about the product. Negotiate and confirm the final price, shipping, payment methods, and other terms. We will send you a proforma invoice to confirm your order. Make the payment according to the method specified on the proforma invoice. We will prepare your order and conduct a 100% quality check before shipping. We will send your order by air or sea, based on your preference. |
