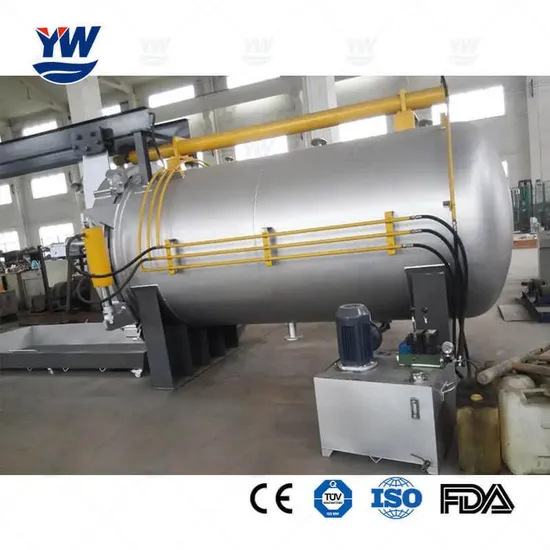

Horizontal Pressure Leaf Filter

Product Description

Description of Horizontal Pressure Leaf Filter
Horizontal pressure leaf filter is an enclosed filtration system and can be fully automated. Horizontal pressure leaf filter for high flow fluid with low solid content, it takes a larger filter area than vertical pressure leaf filter. It is widely used in chemical, pharmaceutical oil and food industries for the filtration of liquids.
Specification of Horizontal Pressure Leaf Filter

Model	Filteration Area(m2)	Filter cake volume(L)	Processing power(t/h)			Workpressure(Mpa)	Filtering cylinder volume(L)	I/O Connection	Overflow port	Discharging outlet	Cylinder diameter(mm)	Cylinder height(mm)	Filter spacing(mm)	Weight(Kg)	Projection area(mm)
			Grease	Resin	Drinks
YWBL-2	2	30	0.4-0.6	1-1.5	1-2	0.1-0.4	120	DN25	DN25	DN100	400*3	1280	50	150	500×70
YWBL-4	4	60	0.8-1.2	2-3	2-4		250	DN40	DN25	DN125	500*3	1520	50	180	600×800
YWBL-7	7	105	1.4-2	3-5	4-8		420	DN40	DN25	DN150	600*3	1920	50	326	750×100
YWBL-10	10	150	2-3	5-8	5-10		890	DN50	DN25	DN200	800*4	2120	70	474	1000×1200
YWBL-12	12	240	2.4-3.6	6-9	6-12		1190	DN50	DN40	DN250	900*4	2220	70	554	1200×1300
YWBL-15	15	300	3-5	7-12	8-16		1580	DN50	DN40	DN250	1000*5	2370	70	815	1400×1500
YWBL-20	20	400	4-6	10-15	10-20		1770	DN65	DN40	DN250	1000*5	2670	70	910	1400×1500
YWBL-25	25	500	5-7	12-18	12-24		2200	DN65	DN40	DN300	1100*6	2740	70	1024	1500×1700
YWBL-30	30	600	6-9	14-22	15-30		2770	DN65	DN40	DN300	1200*6	2870	70	1165	1600×1800
YWBL-36	36	720	7-10	16-24	18-36		2870	DN80	DN50	DN300	1200*6	2970	70	1202	1600×1800
YWBL-40	40	800	8-12	20-30	20-40		3500	DN80	DN50	DN350	1300*6	3070	70	1342	1700×1900
YWBL-45	45	900	9-13	22-32	22-44		3630	DN100	DN50	DN350	1300*6	3270	70	1422	1700×1900
YWBL-52	52	1040	10-15	25-40	26-52		4380	DN100	DN50	DN350	1400*6	3370	75	1900	1800×2000
YWBL-60	62	1200	12-18	38-42	30-60		5100	DN100	DN50	DN400	1500*8	3530	75	2114	2000×2200
YWBL-70	70	1400	14-20	35-50	35-70		6940	DN125	DN50	DN400	1600*8	4220	80	2662	2200×2400
YWBL-80	80	1600	16-24	40-60	40-80		8300	DN125	DN50	DN400	1800*8	4220	80	3882	2400×2600

Features of Horizontal Pressure Leaf Filter A variety of filter aids can be added and the filter area is up to 200 m². Horizontal structure to let the filter leaves are able be drawn out, it's greatly convenient for discharging and cleaning. Automatic filter cake discharge. The filter can operate in both dry and wet cake discharge modes. Fully closed structure and fully automated operation reduce environmental pollution and labor costs. Suitable for batch processing applications requiring high flow rates with small solids removal.
Details of Horizontal Pressure Leaf Filter

Application of Horizontal Pressure Leaf Filter Food & beverage: Edible oil coarse filtration, bleached oil filtration, gelatin, vinegar, starch, sugar juice, sweet water, etc.; beer, juice, wine, milk, etc. Petrochemicals: Diesel oil, lubricating oil, petroleum wax, mineral oil products, etc. Fine chemicals: Resins, varnishes, dyes, lacquers, etc. Organic chemicals: A variety of organic acids, alcohols, benzene, aldehydes, etc. Inorganic chemicals: Bromine water, potassium cyanide, fluorite, etc. Our Workshop
Our Warehouse
Our Product Exhibition Hall
Packing & Shipping
Customer Visiting Our Factory
About Us FAQ 1. How long is the delivery time of your product? The delivery time is within 30 working days. But when the crushing plant is big and the customers have special requirement on the crushing plant, the delivery could be extended. 2. How long is the product warranty period? Our warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included. 3. What's the after sale service of your company? We will provide foundation drawing to the clients for intallation. Besides, we can provide guidance service for installation and operation of workers, etc. 4. Can your company provide wearing parts? We can produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.

---
