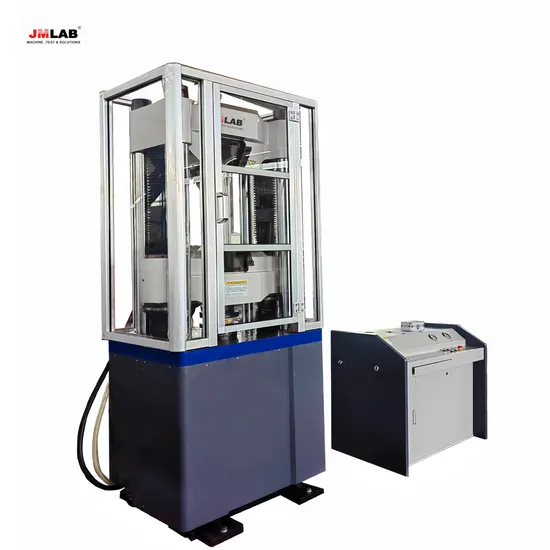

Waw-300/600/1000/2000kN Computer Control Electro-Hydraulic Servo Tensile/Compression/Bending/Universal Testing Machine

Product Description

Product Parameters Overview:
The WAW series microcomputer-controlled electro-hydraulic servo universal testing machine adopts a lower-cylinder structure. It is mainly used for mechanical properties testing of metals, non-metals, composite materials and products in the form of tension, compression, bending and shearing. At the same time, it can be used according to the GB, ISO, JIS, ASTM, DIN and various standards provided by users are used for testing and data processing. It is widely used in material inspection and analysis in construction, metallurgy, aerospace, machinery manufacturing and other industries. It is an ideal testing equipment for scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Test standards:
GB/T, JB, ISO, ASTM, HGT, EN
Safety Device:
Software protect: the software will stop the machine if overload;
Machine protect: the machine will stop the machine if overload;
Emergency stop button: customer could stop the machine manually from this button;
Different types of safety covers are optional .

Model	WAW-300D	WAW-600D	WAW-1000D	WAW-2000D
Maximum test force:	300KN	600KN	1000KN	2000KN
structure	Six-column structure: four columns, two screws
Test force measurement range	6KN-300KN (2%-100%FS)	12KN-600KN(2%-100%FS)	20KN-1000KN(2%-100%FS)	40KN-2000KN(2%-100%FS)
Test force indication accuracy	Better than±1%;
Test force resolution	±1/500000
Displacement resolution	0.01mm;
Deformation measurement	Extensometer 10/50 standard, others optional
Deformation accuracy	±0.5%
Constant force/deformation/ displacement range	0.4%~100%FS
Piston maximum moving speed	100mm/min	100mm/min	80mm/min	50mm/min
Maximum tensile test space(Exclude piston stroke)	550mm (customized)	650mm (customized)	600mm (customized)	700mm (customized)
Maximum compression space(include piston stroke)	500mm (customized)	500mm (customized)	550mm (customized)	550mm (customized)
Flat specimen clamping thickness	0-15mm	0-30mm	0-15mm	0-50mm
Round specimen clamping diameter	Φ6-Φ26mm	Φ13-Φ40mm	Φ13-Φ60mm	Φ15-Φ70mm
Pressure plate size	Φ135mm	Φ200mm	Φ200mm	Φ250mm
Bending test roller spacing	300mm	300mm	400 mm	500mm
Support roller width	120mm	140mm	140mm	200mm
Pressure roller diameter	Φ25mm	Φ30mm	Φ30mm	Φ50mm
Piston stroke	200mm	200mm	200mm	250mm
Clamping method	Hydraulic clamping

Detailed Photos
Company Profile

FAQ 1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of professional Manufacturers like Universal Testing machines, Fatigue Testing Machines,Torsion And Bending Testing Machines,Friction And Wear Testing Machines,Package Testers, Texture Analyzer,Plastic Rubber Testers, Adhesive testers and other testing Equipment.. .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an E-mail or call ,we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What's the delivery term?
1-3 working days for the standard machine if we have stock in the warehouse. If there is no stock, normally, the delivery time is 3-15 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send the operation manual and video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
5. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

---
