| Hardware | |
| Main Chipset | MT7620A |
| RAM | DDR2 128MB (MAX DDR2 256MB) |
| SPI FLASH | 16MB (MAX 32MB) |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u |
RT Power | 802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER |
| Work Channel | 2.4GHz choose:1-13 |
| Wireless Rate | Max 300Mbps |
| Work Frequency | 2.4GHz |

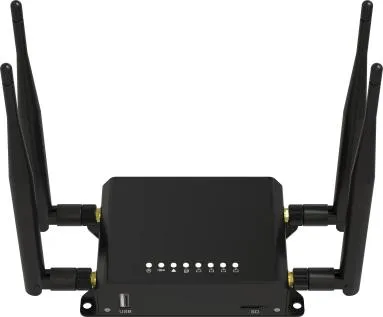

| Antenna | 4 removable antenna |
Interface | 1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) 4 10/100M LAN port(Auto MDI/MDIX) |
| LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
| Button | Reset/WPS |
| Max Power consumption | < 12W |
| Dimension (L*W*H) | 141*85*26MM |
| Software | |
| WAN Type | PPPoE,Dynamic IP, Static IP |
Work Mode | AP; Router; |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
| DDNS | Support |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Band Control | Support |
| Static Router | Support |
| System Log | Support |
Other Function | Mac clone NTP Synchronize Web firmware upgrade |
| Others | |
Work Environments | Operating Temperature:0ºC ~ 40ºC; Storage Temperature:-40ºC~ 70ºC; Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing |
| Adapter | 12V 1A |
| Authentication | FCC & CE &RoHs |
