Coffee Creamer Coffee Mate Non-Dairy Non Dairy Creamer Process Line

Product Description

Generally speaking, non-dairy creamer production line consists of mixing and emulsifying, homogenization, sterilization, spray drying and screening sections. As pre customers requirements, we also supply CIP system for easy cleaning and to reduce the operating costs.
Non-dairy Creamer Production Line

Brief Indtroduction:
Non-Dairy Creamer also known as NDC, is a powder creamer, which is made of hydrogenated vegetable oil, glucose syrup (or maltodextrin powder) and some other food ingredients by mixing, homogenizing and spray drying processes. It has the following characteristics.
a) Stability for storage: The oil beads are encapsulated, so the products has a thermal stability and not easy to be rancid.
b) Good operational performance: non-dairy creamer can be mixed with different raw materials uniformly and the product is powder, it is easy to be packed in bags.
c) Stengthen the food fat, improve flavor. According to customers' requirements, we can make the product with strong milk taste, or light milk taste.
These days, there"re a lot of reports or arguments about trans fat in NDC. After some trials and research, we have developed new processing technology which will make the trans fat contents very low, and meet the strict regulations in the world.

i Mixing and Emulsifying
Mix the glucose (or maltodextrin powder), hydrogenated vegetable oil, casein, emulsifier, phosphate and other additives together as per proportions of the formula.
Normally, the DE value of glucose syrup (or dextrin powder) is around 22- 30 (depends of the requirements of the product), melting point of hydrogenated vegetable oil is between 35-53 degrees, so to produce high quality products.
There are two kind of mixing device: specialized emulsifier or vacuum mixer.
The mixing temperature is around 60-70 degrees.
ii . Sterilization
To avoid any hygiene problems, we do pasteurization after mixing process. The most popular creamer sterilization machines are: plate type and tube bundle type.
iii . Homogenization
In order to make the product solved very fast in instant drinks, such as coffee, milk tea and black tea etc, it is necessary to do high-pressure homogenization.

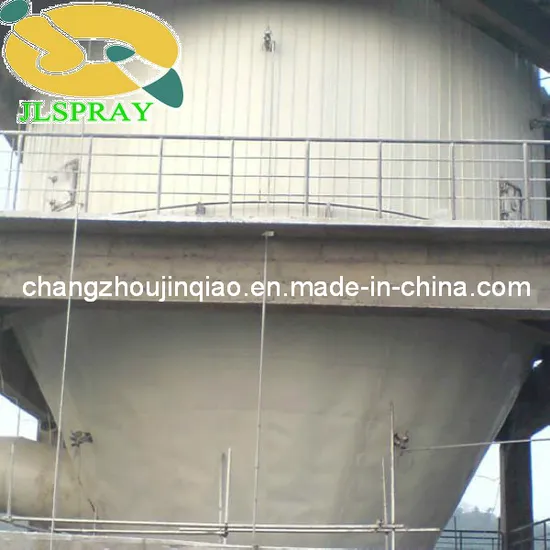

iv .Spray drying
Our special designed spray dryer reduce the height of the workshop, and increase the flowability of the product. The particle size is bigger and the solubility is good.
We normally configure a vibration fluid bed after the spray dryer as the second stage dryer and cooler. Sometimes, the vibration fluid bed only works as the cooler if pneumatic transfer if used for transportation of the product before packaging.
v .Screening and powder processing
The dried and cooled products will be packed after screen separation, and metal detector is normally used here.
Sometime products could be cooled during pneumatic transfer, then we could use the vibration fluid bed only as the cooler, so to reduce the investment and operating cost.
vi . WIP System
Cleaning of food processing equipment is a time consuming work, which occupies a lot of production time, our company supply Washing In Place with different configurations for customers option.
vii .Others
Sometimes, if it is not convenient purchase the glucose syrup, and the output of the plant is relatively large, we suggest starting the production from starch. Thus it is necessary to equip with glucose syrup production line. Please refer to the maltodextrin production line for the details.
Customers that are interested, please contact us for further details. We can supply budget of the total investment, area occupied, utilies consumption based on each ton, and other relative information for customers to make decision.

Specification	NDC-1000	N DC-2000	NDC-3000	NDC-5000	N DC-8000	N DC-10000
Nominal Output (kg/h)	1,000	2,000	3,0000	5,000	8,000	10,000
Annual Output (8000H/Y) (Ton/Y)	8,000	16,000	24,000	40,000	64,000	80,000
Area required (m 2 )	300-400	450-550	500-600	600-700	800-900	950-1,050
Product collection rate	98-99.5% (Depends on the specification, URS and technical parameters)
Final moisture contents (%)	^ 3%(Depends on URS)
Bulk density of product (Kg/L)	0.45-0.55 (Depend on the configuration, specification and processing parameters)
Discharge temperature (°C)	35-45 °(Depends on configuration and URS)
Fuel	Any fuel, such as gas, LPG, oil, and coal etc, or other solid fuel, such as rice hull, coconut shells, and wood chip etc.

---
