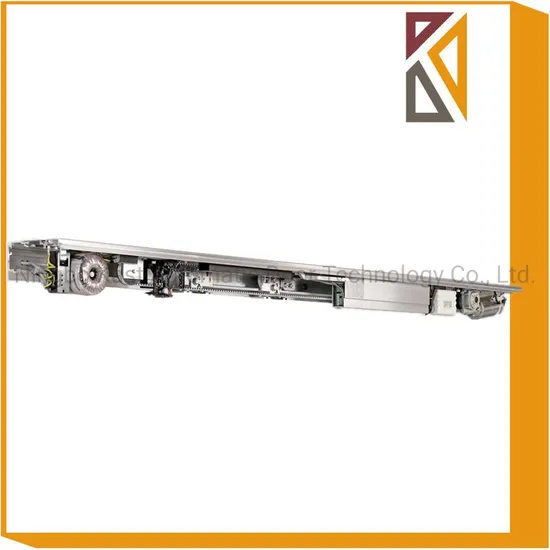

Geze Ecdrive T2 Linear Automatic Sliding Door System

Negotiable 20 Sets (MOQ)

Basic Info.

Model NO.

Geze Ecdrive

Type

Sliding

Open Style

Program Selector

Opening Type

Geze Radio Programme

Special Function

Emergency Escape

Color

Silver

Certification

TUV, ISO9001, CE

Position

Commercial

Surface Finishing

Finished

Motor

Gr63*25 Dunkermotoren Motor

Control

Geze Dps

Holding Weight

120kg*2

Door

Frame Door/Frameless Door

Power Supply

110V-220V

Battery Emergency

Yes

Fire Terminal

Yes

Control with Bus Interface

Yes

Speed

80cm/S

Control with Fault Memory

Yes

Self-Learning

Yes

Application

Hotel,Bank,Airport,Supermarket,Shop

Made by Geze

Yes

Transport Package

Carton

Specification

4.2m length

Trademark

Geze

Origin

China

HS Code

9032899090

Production Capacity

1000sets/Month

Product Description

The Ecdrive T2 single and double leaf automatic door system is able to move doors up to 140 kg leaf weight. It is mostly frequently installed products for interior and exterior door with high access frequency. The further development of the ECdrive was based on the premise of strengthening the areas of design, leaf weight and installation efficiency. The cover height was reduced from 120 to 100 mm to give the drive a slimmer and even more elegant design. The outstanding feature of the new ECdrive T2 capable of networking and can be flexibly integrated via the GEZE DCU103 CAN bus interface and the GEZE IO 420 interface module via BACnet™ into networking solutions such as the GEZE Cockpit. This allows for fast, easy and standardised integration into building management systems. GEZE sliding door systems can therefore be easily visualised and controlled via building management systems.
Sectional View,
Geze Ecdrive T2 profile is surface model and made of high strength aluminum alloy. Modular and slim design, height 100mm, depth 190mm.ECdrive door leaf and side elements with fine-framed toughened safety glass (ESG) clamping profile
Technical Datas,

Mode	Ecdrive T2
Door leaf	Single open	Double open
Clear opening width	1000 - 3000 mm	700 -3000 mm
Door weight	140KG*1	120kg*2
Motor	Motor gear unit
Dimension	190*100mm
Open speed	0.8m/s
Close speed	0.8m/s
Door leaf adjustment vertical	10mm
Door leaf adjustment horizontal	15mm
Power supply	220 V AC ±10% ; 50/60 Hz
Power consumption	140W
Rechargable battery	NiCd,24V,700mAh
Ambient temperature	-20°C to +50°
Relative humidity (non-condensing)	max. 85%
