| US$4.00-5.00 | 300 Pieces (MOQ) |
| Type | HFA6 |
| Coil voltage form | DC |
| Coil voltage | 36, 9, 12, 48, 24, 6, 18 |
| Contact arrangement | 5Form A+1Form B , 3Form A+3Form B, 4Form A+2Form B |
| Contact version | Single contact |
| Terminal type | PCB |
| Sort | Single side stable |
| Contact capacity | AgSnO2 |
| Insulation standard | B, F |
| Contact plating | No gold Plated, & x1C;& x06;Gold Plated |
| Packing method | plastics packing |
| Rated voltage(V) | 250VAC |
| Coil angel form | PCB |
| Coil power | Approx.0.5W |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min |
| Operate time(ms) | ≤20 |
| Release time(ms) | ≤20 |
| Coil resistance(Ω) | 6:72;9:162;12:288;18:648;24:1152;36:2592;48:4608 |
| Creepage Distance(mm) | 8 |
| Electrical Distance(mm) | 5.5 |
| Insulation resistance(MΩ) | 1000 |
| Max. switching Current(AC) | 6 |
| Max. switching Current(DC) | 6 |
| Max. switching voltage(VAC) | 400 |
| Max. switching voltage(VDC) | 30 |
| Ambient temperature (max)(ºC) | -40 |
| Ambient temperature (min)(ºC) | +85 |
| Mechanical endurance min | 10000000 |
| Electrial eddurance min | 100000 |
| Contact gap | Nil:0.8 |

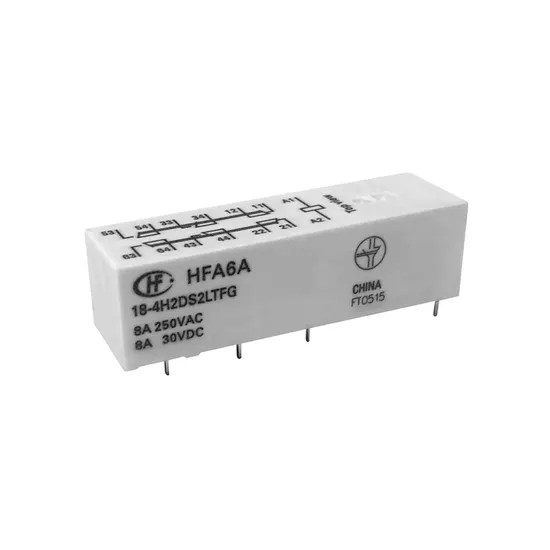

| Product Description | Safety relay |
| Application | appliances,etc |
| Weight(g) | Aporox. 25 |
| Volume(mm³) | 50×13×24 |
| Product approval | UL,TUV,CQC |
| File No. | UL:E134517,TUV:B120553286004,CQC:CQC16002150625 |
