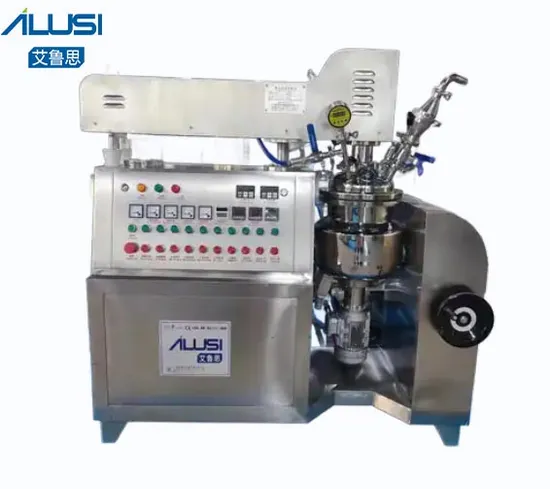

Electric Heating Lab Immersion High Shear Cream Emulsifier Homogenizer

Product Description

Product DescriptionElectric Heating Lab Immersion High Shear Cream Emulsifier Homogenizer
The vacuum homogeneous emulsifier rotates at high speed through the homogenizing head connected to the engine to shear, disperse and impact the material in a vacuum state, quickly and evenly distribute one or more phases into another continuous phase. The strong kinetic energy of the mechanical force is used to make the material in the narrow gap between the stator and rotor, and withstand hundreds of thousands of hydraulic shears per minute, it is always subjected to centrifugal force, extrusion, impact, tearing and other comprehensive effects instantly and evenly. Disperse and emulsify the material to form a water-in-oil and oil-in-water state, and finally obtain a high-quality product without bubbles, delicate and stable.
Product Parameters

No	Model	AVE-20
1	Working capacity	20L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scrape mixer
4	Mixing motor power	1.1KW
5	Mixing frequency	1.1KW
6	Mixing Speed	0-84rpm
7	Homogenizer	Bottom homogenizer with frequency inverter
8	Bottom Homogenizer power	2.2KW
9	Speed	0-2880rpm
10	Hydraulic lifting system	0.55KW
11	Vacuum pump	Water cycle vacuum pump, power: 0.75KW
12	Control method	Button control/ HMI
13	Frequency converter	Delta/Panasonic/Mitsubishi
14	Electrical components	Schneider/Delixi
15	Jacket	Double jacket,3 layers
16	Tank materials	Inner layer 4mm/SUS316 Middle layer 4mm/SUS304 Outer layer 2mm/SUS304

Machine detailsVacuum emulsifier main pot
Main pot hydraulic lifting, three layers of stainless steel structure, can be manually tipped out. Equipped with material inlet, vacuum gauge, vacuum valve, view mirror, air filter, perfume hopper and so on.
Blender
Type: frame oar scrape blender,single way or double way rotating
Material: SUS316L
Speed:0-65rpmElectric control system
Electric control cabinet buttons control or PLC touch screen controller design.
adopt SUS304 Stainless steel plate, thickness:1.5mm
Frequency inverter Delta
Indicator light Schneider
Water & Oil heating
Water pot Working volume: 45L
Oil pot Working volume: 30L
Mixing speed: 1440rpm
Pre heating and mixing

---
