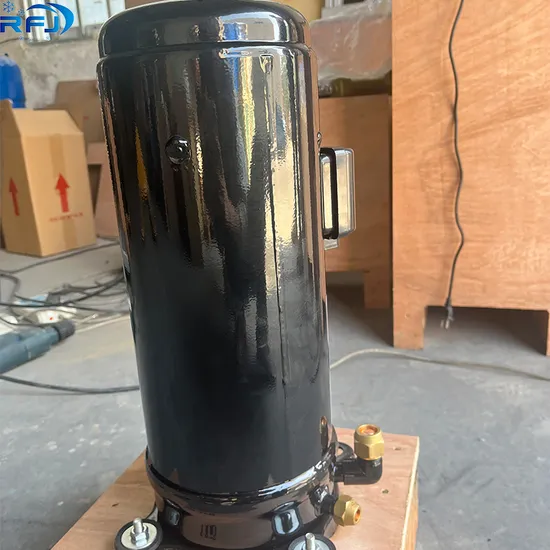

(C-SC753H8H) SANYO / Panasonic Compressor, Air-Conditioning Scroll Compressors

Product Description

(C-SC753H8H) SANYO / Panasonic Compressor, Air-Conditioning Scroll Compressors
SANYO Scroll Compressor(C-SC Series)
R22/R407A/R404
Applicable to ordinary conditions in equivalent conditions,
such as standard rating conditions, maximum operating conditions, low temperature conditions, etc.

odel	Code	Out Put HP	Displ. cm3/rev	50Hz				60Hz				Outline Graph Code
				Nominal Capacity		COP		Nominal Capacity		COP
				kW	kBTU/h	W/W	BTU/Wh	kW	kBTU/h	W/W	BTU/Wh
C-SBR235H38A		7	110.2	19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	A
C-SBR235H38B				19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	At
C-SC583H8H	809 284 88	8	131.9	23.6	80.6	3.3	11.3	28.5	97.3	3.26	11.1	D
C-SC583H8K	809 286 88			23.6	80.6	3.3	11.3	28.5	97.3	3.26	11.1	Dt
C-SC603H8H	809 281 88		137	24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	D
C-SC603H8K	809 283 88			24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	Dt
C-SC673H8H	809 291 88	9	148.8	26.5	90.5	3.29	11.2	32	109.3	3.27	11.2	D
C-SC673H8K	809 293 88			26.5	90.5	3.29	11.2	32	109.3	3.27	11.2	Dt
C-SC753H8H	809 201 88	10	171.2	30.6	104.5	3.38	11.5	36.9	126	3.32	11.3	E
C-SC753H8K	809 203 88			30.6	104.5	3.38	11.5	36.9	126	3.32	11.3	Et
C-SC863H8H	809 224 88	12	199.1	35.2	120.2	3.32	11.3					E
C-SC903H8H	809 221 88		205.4	36.1	123.3	3.31	11.3					E
C-SC903H8K	809 223 88			36.1	123.3	3.31	11.3					Et

→For more compressor model please click to contact us!
Q&A:
(1)Q:What is the packaging and shipping method?
A: By Sea: Export wooden package,with refrigerant oil .
By Air: Full-sealed wooden package, without refrigerant oil.
(2)Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
(3)Q:How long is the warranty period for this product?
A: 1 year.

---
