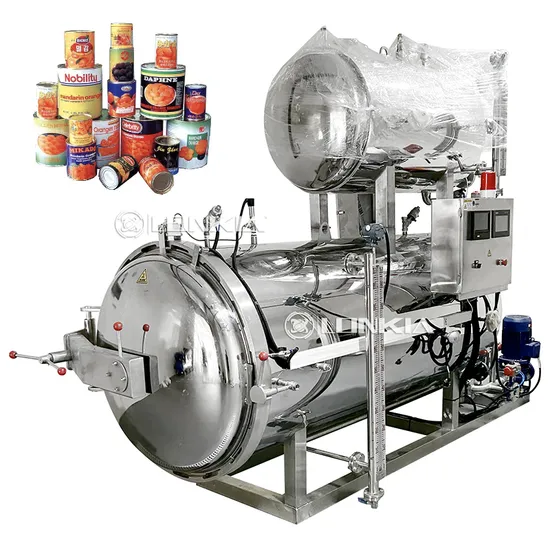

Precision Water Spray Retort Machine for High-Quality Food Processing

Product Description

Product Description
The sterilization pot is composed of pot body, pot cover, opening device, locking wedge, safetyinterlocking device, track, sterilization basket, steam nozzle and several pipe orifices. Application: Sterilization potsterilization method is usually divided into steam, water, killing the two types of sterilization, water is killed by the boilersteam pot hot water heated to 121 ºC, according to different products in different time of heat preservation, achieve the purpose
of killing bacteria, can be applied to meat products, dairy, egg, bean products, canned fruit, vegetable, beverage products such as
food sterilization.
Advantages
1.High temperature short time sterilization: This machine is used with pressure steam boiler,steam cooking, sterilization, shorten the sterilization time, improve work efficiency;Type 1200 (diameter;Tube length: 3600mm) 2.High sterilization accuracy: This machine adopts advanced technology to control the whole process of temperature, pressure,
sterilization time, inlet, inlet, drainage and exhaust intelligently and automatically. The temperature is accurate (±0.5ºC). 3.energy saving: The working medium used in sterilization process can be recycled, saving energy, time, manpower and material
consumption, and reducing production cost.

Features
1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Running in a high automatization and intellectualization,no pollution
Product Parameters

Model	Overall dimensions	volume	power	voltage
LK-SJ700	2100*1200*2000mm	0.6m³	27KW	380V/220V
LK-SJ900	3400*1500*2630mm	1.36m³	60KW	380V/220V
LK-SJ1000	3600*1700*2900mm	2.02m³	80KW	380V/220V
LK-SJ1200	5620*1900*3140mm	4.8m³	100KW	380V/220V

Application
