Precision Electrically Heated Bimetal Gauge with on-Site Display

Product Description

Product Description
Product Brief Introduction:
The Bimetal Thermometer is a state-of-the-art field detector instrument meticulously crafted to measure
temperatures in middle and low ranges with impeccable accuracy. It proficiently gauges liquids, steam, and
gases within an extensive temperature span of -50ºC to +500ºC across an array of production processes.
Features:
On-site display of temperature, ensuring readings that are both intuitive and convenient.
Engineered for safety, reliability, and an extended service life.
Versatile structural designs to accommodate a variety of requirements.
Working Principles:
Our bimetal thermometers utilize a bimetallic strip, coiled into a circular form. Upon heating, differential expansion at one end induces the pointer to rotate, thereby accurately displaying the relative temperature value.

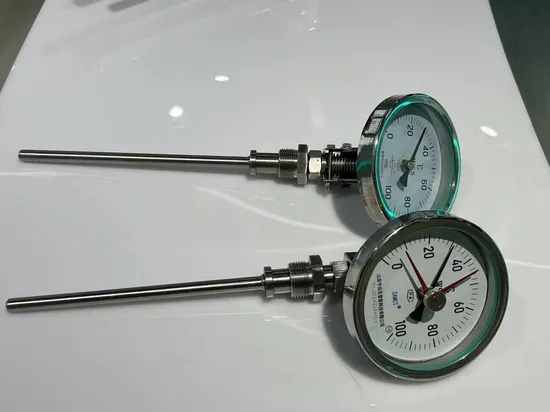

Detailed Photos
Product Parameters
Main Technical Features:
Product Compliance Standard
JB/T8803-1998
Dial Nominal Diameter: 100, 150 mm
Accuracy Grade: 1.5
Thermal Response Time: ≤ 40s
Protection Rating: IP55
Electrical Characteristics

Rated power VA	Max working V	MAX permit C
10	220 A.C	0.7A
	24 D.C

Operating Atmospheric Conditions
Temperature: -25~+55ºC, Relative Humidity: ≤ 85%
Tolerance at Set Point
Tolerance no greater than
1.5 times the basic tolerance
Switching Tolerance
No greater than 1.5 times the basic tolerance
Repeatability Limits: ≤ 1/2 of absolute basic tolerance
Insulation Resistance

Rated voltage	DC test voltage	Insulation resistance
24 D.C	100	7M Ω
220 A.C	500	20M Ω

Hot Jacketed BimetalThermometer
Key Technical Features:
Dial Nominal Diameter: 100, 150 mm
Accuracy Grade: 1.5
Connection Size: M27×2,NPT1/2,G1/2
Thermal Response Time: ≤ 40s
Protection Rating: IP55
Types and Specifications

Type	RangeºC	Accuracy	Sheath	Size	Nominal pressure	Sheath Type
WSS-403S	-80~+40 -40~+80 0~50 0~100 0~150 0~200 0~300 0~400 0~500	1.5	1Crl8Ni9Ti 304 316 316L HC-276	75 100 150 200 300	≤300Mpa	Thread
WSS-503S
WSS-413S
WSS-513S
WSS-483S
WSS-413S
WSS-483S
WSS-403L
					15-40Mpa*	Flange
WSS-503L
WSS-413L
WSS-513L
WSS-483L
WSS-583L
WSS-403S
WSS-483L

Note: 1) Can be equipped with various mounting sheaths.
2) Other sheath materials based on agreement.
3)Mark"*"Indicates nominal pressure depends on flange pressure class.
BimetallicThermometerwithThermocouple (resistance)
Key Technical Indices:
Dial Nominal Diameter: 100,150
Hot Response Time: ≤ 40s
Protection Rating: IP55
Accuracy Grade: 1.5
Thermocouple: IClass, 1.5ºCIClass, 2.5ºC
Thermal Resistance: APerformance ClassPrecision Accuracy: ±(0.15+0.005|t|)
Calibration Grade BPerformance ClassPrecision Accuracy: ±(0.30+0.005|t|)
Type Classification: TProduct Type and Specification

Type	Index No.	TemperatureºC	Accuracy	Sheath Material	Insert depth
WSSE-401	B class	-50~+40 -40~+80 0~50 0~100 0~150 0~200 0~300 0~400 0~500	1.5	1Crl8Ni9Ti 304 316 316L HC-276	150 200 300 400 500 750 1000
WSSE-501
WSSE-411
WSSE-511
WSSE-481
WSSE-581
WSSP-401	Pt100
WSSP-501
WSSP-411
WSSP-511
WSSP-481
WSSP-581
WSSXE-401	E
WSSXP-401	Pt100
WSSXE-411	E
WSSXP-411	Pt100
WSSXE-481	E
WSSXP-481	Pt100

Important Note:1) Customization available for Thermocouple Class I and Thermal Resistance Class A upon request and mutual agreement.
2) Additional Options:Other sheath materials can be custom-ordered by agreement.
Our Advantages
Shandong Zhongziyi Intelligent Technology Co., Ltd. integrates the world's most advanced design philosophy and cutting-edge process technology. We offer an unparalleled fusion of innovation and reliability, making our products truly exceptional.Utilizing state-of-the-art mono-crystalline silicon sensors, our high-reliability electronic module designs, and precision temperature and linear correction systems are meticulously crafted with intelligent manufacturing technology.This meticulous approach ensures that our products deliver unmatched precision, stability, and consistency.Our products boast robust intelligent diagnostics, sophisticated simulation capabilities, advanced monitoring systems, local configuration options, and seamless communication functions. Each product adheres to the highest standards for electromagnetic compatibility and lightning protection, with comprehensive specifications for liquid materials.
Our products are extensively employed across a diverse array of industries, including electric power, metallurgy, chemical industry, coal chemical industry, petroleum, petrochemical, environmental protection, food processing, medicine, building materials, light industry, and the nuclear industry.Designed to excel in the most demanding environments, our products ensure peak performance and unwavering reliability.
Certifications
Company Profile
Shandong Zhongziyi Intelligent Technology Co.Ltd., proudly situated in the prestigious Zibo Science and Technology Industrial Park, encompasses an expansive 18,000 square meters. Our state-of-the-art manufacturing facility is built to modern standards, ensuring unparalleled quality and innovation.We are passionately dedicated tothe research and development,manufacturing,sales, and exceptional service of pressure and temperature instruments.
As a distinguished member of the National Pressure Gauge Industry Association, we proudly hold the esteemed ISO9001 quality management system certification. Recognized as a high-tech enterprise in Shandong Province, we consistently strive for unparalleled excellence.
We are the esteemed close partner of Rosemount in China, maintaining cutting-edge technology synchrony with this global leader.
With nearly 60 years of profound engagement in instrument R&D and production, we have amassed extensive technological expertise and exceptional customer service experience. Our products are extensively utilized in petroleum, chemical industry, papermaking,metallurgy,medicine,food,power, machinery, and beyond. Our extensive sales network spans the entire nation and reaches globally, earning deep trust and glowing recommendations from countless satisfied users.
Our company's core philosophy is "quality first, customer first."
We warmly welcome customers to visit our factory and explore potential cooperation opportunities.
Company and Factory Photos:
Packaging & Shipping
We guarantee prompt delivery of your ordered product, ensuring it reaches you as swiftly as required.
Team Building
We believe that the strength of the best team always shines through!
Exhibitions
We are actively seeking international cooperation through prestigious exhibitions abroad, showcasing our unwavering commitment to fostering global partnerships.
FAQ
1. What kind of product do you supply?
Ourextensive product rangeincludes:pressure transmitters, temperature transmitters, level transmitters, pressure gauges, temperature gauges, and flowmeters.
2. What are your product and technology advantages?
Our factory, established in 1966, boasts nearly 60 years of manufacturing and R&D expertise. We are also a trusted partner of Rosemount inChina.Our technologyis closely aligned with Rosemount's. Notably, our remote pressure transmitter technology and stability are considered the best in China.
3. Where is your factory located?
Ourfactory is nestled in Zibo, Shandong province, China, a premierthreeinstrument production areaandspans over an impressive 18,000 square meters.
4. Can we visit your factory?
Youare always welcome to visit our factory at any time that is convenient for you.
5. What is the warranty of your product?
Ourproduct warranty lasts for 12 months from the shipping date, but we providelifetimemaintenance.
6. What are your payment terms?
Atpresent, we accept a 50% down payment and the remaining 50% balance payable 5 days before delivery via T/T, Western Union,PayPal,and trade assurance online payment.
7. What kind of certification do you have?
Wehold ISO9001, CCC, CNAS laboratory accreditation, Flame-proof certification, intrinsic safety certification, SIL certificate, ECM certificate, and Russia EAC and PAC certificates,alongwithseveralinvention patents.
8. How long is your delivery date?
Forpeak season, it is 4 weeks, and 2 weeks for the off-season. Regardless of the season, we strive to meet your requirements.
9. How is your after-sales service?
Our products enjoy an excellent reputation for quality and rarely require warranty service. Nonetheless, we offer 24/7 online
support for any installation, commissioning, operational, or other issues.
10. How can I send a quotation?
Youcan send a quotation through our email or cellphone as provided below:

---
