Af-45 HIPS Medical Cotton Swab Extrusion Machine

Product Description

AF-45 HIPS Medical Cotton Swab Extrusion Machine
Introduction of HIPS Medical throat swab extrusion machine machinery:
1. The machine is used to produce PS medical throat swab, lollipop stick, drink straw, cotton swab stick, pen refill tube etc by changing different structure and extruding dies;2. Applied materials: PP ABS PS etc;3. Different color options are available: single color, double color, multi colors etc.
4. Features: high speed, high output, good performance, perfect plasticizing effect, multi function for multi application.
5. machine can be designed to make two sticks at one time.(Two cavities output)
SPECIFICATIONS

Model		AF-45
Feature	Material	PP PE ABS PS
	Color	1
	Straw diameter	φ3.0 ~ φ9 mm

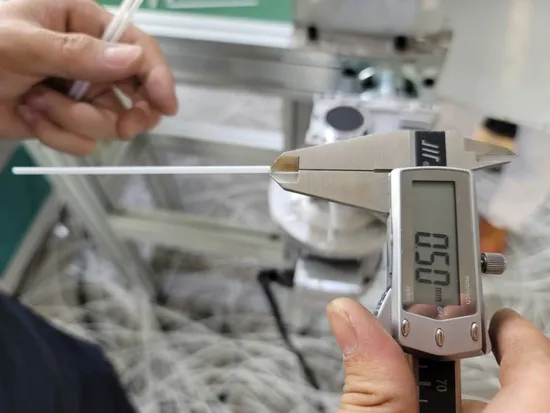

	thickness	0.10 ~ 0.35 mm
	Straw length	80 ~ 300 mm
	Stripes	Straight
	Capability	400 ~ 1800 pcs/min
	Extruding output range	20 ~ 40 kgs/hr
Extruder	Main Screw diameter	φ45 mm
	Screw L/D	28 : 1
	Main driving motor	11 Kw (VFD)
	Vice screw diameter	φ25 mm×2
	Vice driving motor	0.75Kw ×2(VFD)
	Gearbox	ZLY133
	Automatic thermo-controller	11 sets
	Heating power	14.75 kw
Water cooling tank	Forming device	1 set
	Vacuum Pump motor	1.1 kw(choose)
	Water storage tank	(length)3400 mm /304 Steel stainless
	Base frame material	(304 Steel stainless)
	Blow dry device	1 set
Take up & Cutting Unit	Take up unit	1 set
	motor	0.75kW×1(VFD)
	Cutting knife unit	1 set
	motor	0.75kW×1(VFD)
	angle of port	90°/60°/45°
	Digital counter	1 set
Others	Air compressor	1.5kw(choose)
	Dimension LxWxH	8m×1.4m×1.6 m
	Machine weight	2300 kgs

Packaging and shipping:

PACKAGING	plastic film + stretch film + wooden case + drying agent.
DELIVERY	About 50 days (all new parts)
SHIPPING	We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent). We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE	a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference;
IN PRODUCTION	a. Supply layout drawing to clients for preparation; b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc; c. Keep the clients be informed of the production status;
AFTER SALE	a. Send engineers to overseas for installation ,commissioning and training; b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests; c. Offer help if any need from clients like spare parts need etc; d. Supply necessary technical support at request;

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.

---
