Product Details
Product Description
Product Description
Description
Application scenarios

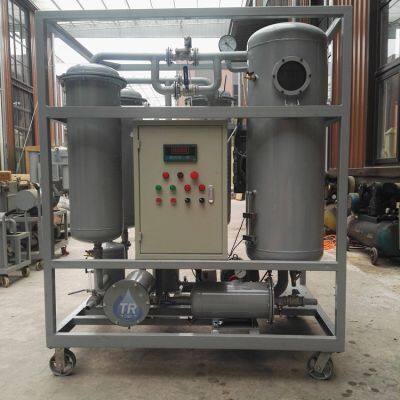

This centrifugal oil cleaning machine is mainly used for turbine oil treatment, which can quickly and effectively remove moisture, gas and impurities in the oil. Improve the oil quality, ensure the normal operation of the unit adjustment and lubrication system, and prolong the maintenance period of the unit.
Product advantages：
1. Strong ability to remove water and break emulsification, it is easy to separate a large amount of water in the oil, and it is also easy to remove a small amount of water in the oil. The oil becomes clear and transparent.
2. The ability to filter impurities is strong. The automatic backwashing filter bag can remove a large amount of impurities in the oil. The large area and deep precision filter material can remove the fine particles in the oil. It can be used instead of the oil system cleaning device to make the oil with serious pollution. The system can also be restored to within the "Operating Turbine Oil Pollution Control Standards".
3. High degree of automation, small and light, safe and reliable. This machine adopts infrared liquid level automatic control device, which realizes the separation of man-machine and makes the operation simpler and more reliable.
Main performance:
Centrifugal oil cleaning machine can be used to treat oil with water content of about 30%, serious emulsification, and pollution degree of NAS1636 grade 15. After the circulating purification treatment of this machine, it can reach:
Appearance: No impurities, transparent, no free water
Residual moisture is less than 50ppm
Filtration accuracy is less than 5 microns
Cleanliness NAS1638, level 5
Technical Parameter
Item
| unit
| ZJC-10
| ZJC-20
| ZJC-30
| ZJC-50
| ZJC-75
| ZJC-100
| ZJC-150
| ZJC-200
| ZJC-300
|
Flow rate
| L/H
| 600
| 1200
| 1800
| 3000
| 4500
| 6000
| 9000
| 12000
| 18000
|
Vacuum degree
| Mpa
| -0.06 ～ -0.096
|
Working pressure
| Mpa
| ≤0.3
|
Fault free
| H
| ≥4000
|
Continuous working time
| H
| ≥150
|
Working temperature
| ℃
| 40 ～ 70
|
Heating power
| kW
| 9
| 18
| 30
| 36
| 60
| 72
| 108
| 144
| 144
|
Total Power
| kW
| 11.5
| 17.5
| 33
| 39.5
| 66
| 79
| 115
| 153.5
| 154
|
Oil index after treatment
|
Water content
| 80ppm
|
Gas content
| ≤0.1%
|
cleanness
| ≤5µm（or as per requirement）
|
Demulsification Value
| ≤10 min
|
Instructions for use
Operation Precautions When the vacuum pump is working, pay attention to the oil condition displayed by the oil mark of the vacuum pump (the oil should be on the oil mark line). If it is found that there is too much water in the vacuum pump oil or it is too dirty, it should be replaced in time to avoid affecting the use of the vacuum pump. life. (1# vacuum pump oil) When it is found that there is a lot of water in the cooler during operation, it should be released in time. Always pay attention to the change of the pressure gauge value. During the normal oil filtering process, if the pressure is found to be >0.3Mpa, the filter should be cleaned or the filter element should be replaced in time.
>>
