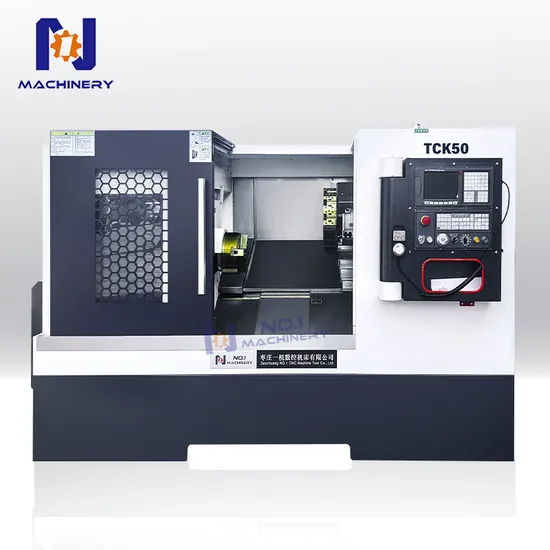

High Precision CNC Slant Bed Lathe 4 Axis CNC Lathe Slant Bed CNC Lathe Tck50

Product Description

Product Description
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy.
Product Parameters

Name	Unit	TCK50 (Tilt 30°)
Maximum rotation diameter on the bed	mm	Φ550
Maximum cutting diameter	mm	Φ520
Processing diameter under the turret	mm	Φ300
Maximum cutting length	mm	500
X-axis travel	mm	260
Z-axis travel	mm	600
X-axis moving speed	mm/min	24000
Z-axis moving speed	mm/min	24000
Handwheel	mm	0.001/0.01/0.1
X, Z feed speed	mm/min	0~5000
X, Z manual feed speed	mm/min	0~1260
X-axis repeat positioning accuracy	mm	0.005
X-axis positioning accuracy	mm	0.006
Z-axis repeat positioning accuracy	mm	0.006
Z Axis positioning accuracy	mm	0.008
Spindle speed	rpm	35-3000
Maximum spindle torque	N.m	48
Spindle nose		A2-6
Spindle through hole diameter	mm	Φ67
Hollow hydraulic chuck through hole diameter	mm	Φ50
Chuck		10 inch 3-jaw
Number of tool holders		12-station
Tool change time	s	0.25
Tool installation size	mm	25×25
Borrowing tool holder installation diameter	mm	Φ32
Tail stock travel	mm	350
Top taper		MT-5#
Main motor power	kw	7.5/11 (4500rpm)
Main motor torque	N.m	48
X-axis feed motor power	kw	2.3
X-axis feed motor torque	N.m	15
Z-axis feed motor power	kw	2.3
Z-axis feed motor torque	N.m	15
Coolant capacity	L	200
Motor type (1HP)	kw	0.18
Installation (length * width * height)	mm	2697/1795/1860
Machine weight	kg	3600

Details Display
Hydraulic chuck 12-station hydraulic turret
GSK control system, optional Siemens/Fanuc/Mitsubishi Adpot 30° one piece slant bed casting structure





Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.




FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
