Meanwell Power Supplies Mean Well Industrial Regulated Switch Mode 5V 12V 15V 24V 36V48V 100W 150W 200W 350W 450W 600W LED Driver DC Switching Power Supply

Product Description

Meanwell Power Supplies Mean Well Industrial Regulated Switch Mode 5V 48V LED Driver DC Switching Power Supply Product Description

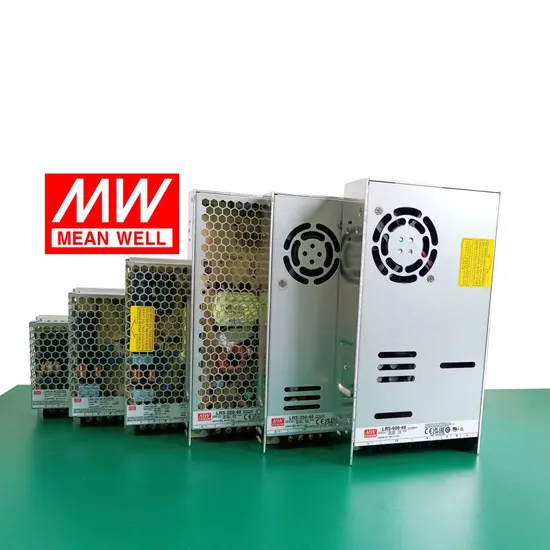

Product Description:LRS series is a single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides 35W/50W/75W/100W/150W/200W/350W/450W/600W with an output voltage line of DC 3V 5V 12V / 15V / 24V / 36V / 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS series that the 35W/50W/75W/100W/150W/200W operates from -30 ºC through 70 ºC under aire convection without a fan (350W/450W/600W with the built-in long life fan). Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to sasily meet the worldwide energy requirement. LRS has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such an TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 AND gb4943. LRS series serves as a high price to performance power supply solution for various industrial applications.
LRS Series Features:> Non-PFC, most economical models
> Ultra compact and 1U low profile
> 300VAC input surge
> No load power consumption: 0.2W~0.75W
> 5G vibration, 70ºC operation
> Operating altitude up to 5000 meters
> Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
> 3 years warranty
> Mean time between failures > 1,000,000 hours
LRS series Basic parameters:

Model	Watt	Input Voltage	Output Voltage	Dimension
LRS-35	35W	85~264VAC	DC5/12/15/24/36/48V	99*82*30mm
LRS-50	50W	85~264VAC	DC3/5/12/15/24/36/48V	99*82*30mm
LRS-75	75W	85~264VAC	DC5/12/15/24/36/48V	99*97*30mm
LRS-100	100W	85~264VAC	DC3/5/12/15/24/36/48V	129*97*30mm
LRS-150	150W	115VAC/230VAC	DC12/15/24/36/48V	159*97*30mm
LRS-200	200W	115VAC/230VAC	DC3/5/12/15/24/36/48V	215*115*30mm
LRS-350	350W	115VAC/230VAC	DC3/5/12/15/24/36/48V	215*115*30mm
LRS-450	450W	115VAC/230VAC	DC5/12/15/24/36/48V	225*124*35mm
LRS-600	600W	115VAC/230VAC	DC5/12/15/24/36/48V	225*124*41mm

Specification:
Meanwell mean well LRS-100W DC 3.3V 5V 12V 15V 24V 36V 48V Constant Voltage LED Strip Light Driver.
Meanwell mean well LRS-150W DC 12V 15V 24V 36V 48V Constant Voltage LED Strip Light Driver.
Meanwell mean well LRS-200W DC 3.3V 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell mean well LRS-350W DC 3.3V 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell mean well LRS-450W DC 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell mean well LRS-600W DC 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell other series switching power supply:

SE Series	RSP Series	UHP Series	TDR Series
Model: SE-450, SE-600 SE-1000, SE-1500	Model: RSP-75, RSP-100 RSP-150, RSP-200 RSP-320, RSP-500 RSP-750, RSP-1000 RSP-1500, RSP-1600 RSP-2000, RSP-2400 RSP-3000	Model: UHP-200(R), UHP-200A UHP-350(R), UHP-500(R) UHP-750, UHP-1000 UHP-1500, UPH-1500-HV, UHP-2500	Model: TDR-240 TDR-480, TDR-960
Watt: 450W, 600W, 1000W, 1500W	Watt: 75w, 100w, 150w, 200w, 320w, 500w, 750w, 1000w, 1500w, 1600w, 2000w, 2400w, 3000w	Watt: 200w, 350w, 500w, 750w, 1000w, 1500w, 2500w	Watt: 240W, 480W, 960W
Output voltage: DC 3.3V 5V 9V 12V 15V 24V 27V 36V 48V	Output voltage: DC 3.3V 5V 12V 15V 24V 36V 48V	Output voltage: 3.3V 4.2V 5V 12V 15V 24V 36V 48V	Output voltage: DC24V, DC48V

Application
Meanwell Power Supplies Mean Well Industrial Regulated Switch Mode LED Driver DC Switching Power Supply for CCTV/LED stripInsustrial control/LED lamp/ light box/ luminous words/ stepper motor lighting project.
