Aluminum Alloy Conductor XLPE Insulated Cable for 25kv Underground Cable Electrical Cable Electric Cable

US$1.00
500-4,999 Meters
US$0.10
5,000+ Meters

Basic Info.

Model NO.
alluminum alloy cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Red Copper Wire
Certification
ISO, CCC, CE, RoHS
Model
ZRYJV22
Brand
Jinshui
Transport Package
Wooden Deun
Specification
1.1*0.5*1.1*0.8
Trademark
Jinshui
Origin
China
HS Code
8544492100
Production Capacity
5000m/Day

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
600.000kg

Product Description

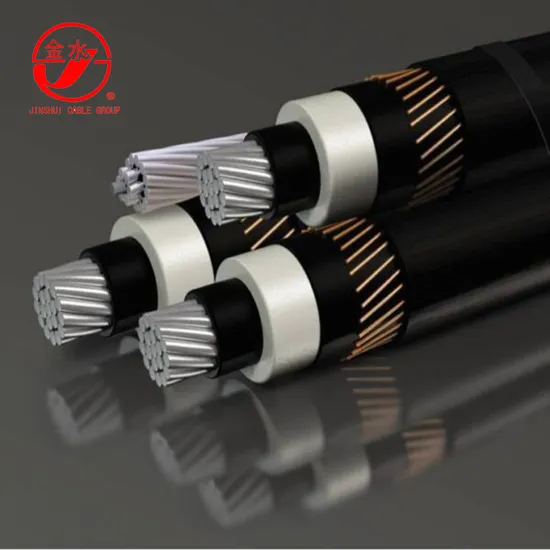

Aluminum Alloy Conductor XLPE Insulated Cable for 25kv Underground Cable
Product standard
XLPE insulated Flame retardant and Fire resistant Power cables are fixed laid in the circuit with frequency 50Hz and voltage up to 3.6/6KV.
We can produce Flame retardant and Fire resistant power cables according to standard GB/T19666-2002, Grade A,B,C or D.
Rated voltage 0.6/1KV and 3.6/6KV.
Conductor of cables can be Copper and Aluminum.
The cables can be single core, two cores ,three cores, four cores(include three main cores and one neutral), five cores(include three main cores and one neutral and one earthing core; Four main cores and one neutral).The cables can be with armor and without armor.
We can produce cables with PVC outer sheath., flame retardant PVC outer sheath or with fire resistant insulation. The cables are produced according to GB/T12706(eqv IEC 60502) and GB/T18380-2001(eqv IEC60332) or GB/T19216(eqv IEC60331) and or the BS, DIN or other international standards. And we also design and produce cables according to the requirement of our clients.

Application characteristics
1.Long term working temperature is up to 90 degree C.
2.The highest conductor temperature is not more than 250 degree C.(lasting time not over 5 seconds.)
3.Laying temperature not less than 0 degree C and the drop height is out of consideration.
4.The cable with chemical stability, anti acid, anti alkali, and oil, anti organic solvent, not easy to be burning.
5.Easy for installation, easy beading and light.
6.Bending ratio as follow:

Item
Single core
Three cores
Non armor
With armor
Non armor
With armor
Min. bending radius during installation

20D

15D

15D

12D
Near joint box or cable terminal, bending with care and use template.


15D


12D


12D


10D
Note: D is the diameter of cable.

Cable type, name and application
Type
Description
Application
Cu
Al
(ZR)YJV
(ZR)YJLV
XLPE insulated and PVC sheathed power cable
Can be laid in indoor, tunnels, cable canal, pipelines and loose soil. Cable should not hear a certain breaking force.
(ZR)YJY
(ZR)YJLY
XLPE insulated and PE sheathed power cable
(ZR)YJV22
(ZR)YJLV22
Steel tape armored, XLPE insulated and PVC sheathed power cable
Laid underground, cable can bear mechanic force, but should not bear large breading force.
(ZR)YJV23
(ZR)YJLV23
Steel tape armored, XLPE insulated and PE sheathed power cable

(ZR)YJV32
(ZR)YJLV32
Steel wire armored, XLPE insulated and PVC sheathed power cable
Laid in water or soil with drop height, the cable can bear mechanic force and large breaking force.
(ZR)YJV33
(ZR)YJLV33
Steel wire armored, XLPE insulated and PE sheathed power cable
(ZR)YJV42
(ZR)YJLV42
Steel wire armored, XLPE insulated and PVC sheathed power cable
Can be laid in water or soil with drop height, the cable can bear larger breaking force.
(ZR)YJV43
(ZR)YJLV43
Steel wire armored, XLPE insulated and PE power cable
