Qualitied Fuel Water Level Controller Cable Float Level Switch

Product Description

Product Description Qualitied Fuel Water Level Controller Cable Float Level Switch
The cable type float switch is integrally formed by plastic injection, so the structure is firm, the performance is stable and reliable, at the same time, it is non-toxic, corrosion-resistant, easy to install, and inexpensive. The liquid control effect is good. General liquid can also be used. Cable length Any length can be customized. The cable float switch is a metal cable float level switch, and the contact part is a mercury switch, which is characterized by high temperature resistance. Because of its simple, reliable, economical and convenient features, it is widely used in liquid level control of various large containers, especially in municipal water supply and drainage, fire protection, water treatment and other industries.
Advantages
1. Suitable for sewage
2. Suitable for closed or open containers
3. Simple and maintenance free
4. High chemical resistance
5. Use micro switch as contact output, contact capacity 10A/250VAC can directly start motor equipment
6. Rubber cable with good weather resistance and long service life
7. Simple structure, no maintenance, can be used for sewage purification
Working Principle
Float switch is using microswitch to be contact elements.When the liquid level rises to the float place, angle of floats place will be changed by the liquid level. When it reaches an certain angle, there will be ON or OFF contact signal output at the switches.

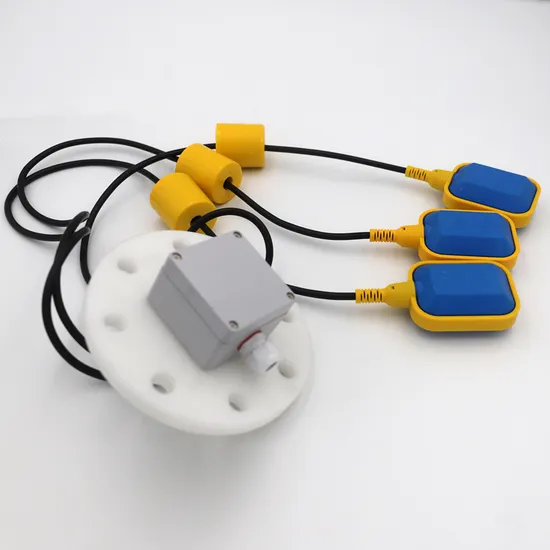

Details Picutres
Technical Parameters

Float Materia:	PP, SUS304
Contact Capacitance:	10A/250VAC(PP),2A/250VAC(SUS304)
Contact type:	1A,1B or 1AB(PP),SPDT(SUS304)
Cable specification:	Rubber cable and PVC(PP),Silicone:0.75mm2×3C(SUS304)
Suitable temperature:	Rubber cable: -10ºC~80ºC,PVC cable:0ºC~60ºC,Silicone: 0~170ºC
Gravity:	>0.6g/cm3(PP),>0.5g/cm3(SUS304)

Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online
Related Level Products
About Us
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.CertificatePackage
FAQ
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: what's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
If you have any questions, please send us inquiry and contact us directly, we will provide you with professional help.

---
