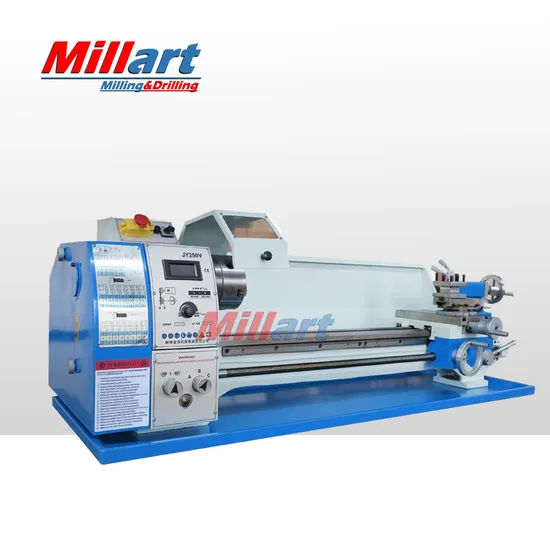

High Precision Jy250 Jy250V Mini Belt Speed /Variable Speed Bench Lathe Machine with 26mm Spindle Bore, Horizontal Manual Metal Lathe Machine

Product Description

Product description:
Technical parameter :
Technical parameter :

Model	JY250	JY250V
Distance between centers	550/750mm
Swing over bed	250mm
Swing over cross slide	145mm
Width of bed	135mm
Taper of spindle bore	MT4
Spindle bore	26mm
Number of spindle speeds	6/variable speed
Range of spindle speeds	125-2000/50-2000rpm
Range of longitudinal feeds	0.07 -0.20mm /r
Range of inch threads	8-56T.P.I
Range of metric threads	0.4 -3.5mm
Top slide travel	50mm
Cross slide travel	115mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT2
Motor	550/750W
Packing size	1150/1350 × 560 × 570mm
Net weight	120kg / 140kg

Standard accessories: Jaw chuck,
Splash guard,
Chip tray,
Toolbox &tools

Optional accessories:
Steady rest
Follow rest
Face plate
4 jaw chuck
Live center
Stand base
Lathe tools
Thread chasing dial
Spindle cover
Lead screw cover
Tool post cover
Side brake
DRO
Quick change tool post Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
