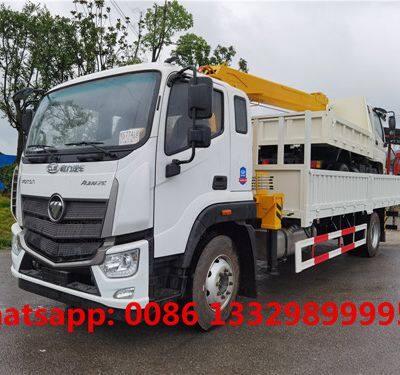

Customized FOTON 8T telescopic crane boom mounted on cargo truck for sale,
FOTON AUMARK 4*2 LHD 240hp diesel truck with crane adopts FOTON AUMARK LHD truck head, 5150mm wheelbase, 8JS105TA 8 speed gearbox, 10tons rear axle, YC6A240-33 240hp diesel engine, 11R22.5 tires*6+1, air cut braking, 24V batteries, etc.
The cargo body dimension (L*W*H) of FOTON AUMARK cargo truck with crane is 6000×2400×550,600
(mm); while the overall dimension(L*W*H) of FOTON AUMARK crane mounted on cargo truck is
Whatsapp/Wechat/Mob.； 0086 13329899995
Main technical parameters of FOTON AUMARK 4*2 LHD 240hp diesel cargo truck with knuckle crane boom manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name
| FOTON AUMARK 4*2 LHD 8tons knuckle boom mounted on truck for sale
|
Chassis type
| BJ1188
|
Parameters
| Overall dimension length/width/height (mm)
| 9000×2500×3580(mm)
|
Cargo body dimension (L*W*H)(mm)
| 6000×2400×550,600
|
GVW(kg)
| 18000(Kg)
|
Kerb Mass(kg)
| 12000(Kg)
|
Approach angle/ Departure angle(mm)
| 18/9 (°)
|
Front suspension/rear suspension(mm)
| 1270/2580 (mm)
|
Fuel Type
| diesel
|
Max Speed
| 90
|
Engine
| Type
| YC6A240-33
|
Displacement/Power(kw)
| 9755ml/177KW/240hp
|
Manufacturer
| YUCHAI
|
Chassis
| Drive Type
| 4*2
|
Wheelbase(mm)
| 5150
|
Tread(front)
| 3050
|
Tread(rear)
| 1820
|
Rear axle
| 10tons rear axle
|
Transmission
| 8 speed gearbox, manual
|
Tire Type
| 11R22.5
|
Upper part(cargo van and crane boom) main parameters
|
Upper body
| Cargo body dimension
| 6000×2400×550,600 (mm)
|
Material
| Carbon steel
|
Side sheet thickness
| 3mm thickness
|
Bottom sheet thickness
| 3mm thickness
|
Painting
| Upon request
|
Crane boom main parameters
|
Crane boom
| Choose to install XCMG 8tons 4 sections telescopic crane boom
|
Working radius
| Approximate 11.8m
|
Max lifting height
| Approximate 13.5m
|
The color of the whole truck is upon request.
|
>>
