| US$3,300.00-5,000.00 | 1 Piece (MOQ) |

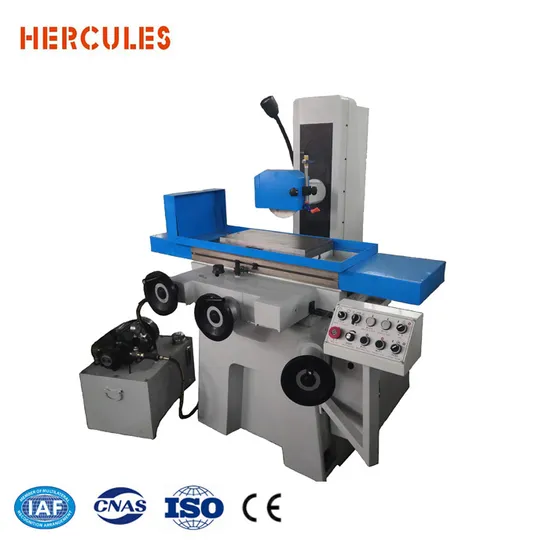

| Specification | unit | M618 |
| Table size | mm | 457×150 |
| Maximum grinding length | mm | 475 |
| Maximum grinding width | mm | 160 |
| Distance Spindle to table | mm | 350-400 customized up to 430mm |
| About feed | ||
| Manual feed | mm | 485 |
| Before feeding | ||
| Manual feed | mm | 180 |
| The manual feed per scale | mm | 0.02 |
| The manual feed per revolution | mm | 5 or 3 |
| Lifting feed | ||
| Each scale handwheel feed | mm | 0.005 |
| Handwheel feed per revolution | mm | 1 |
| Grinding wheel | ||
| Wheel size (diameter*width*diameter) | mm | 180 |
| Spindle speed | 60HZ/50HZ-3600/3000rpm | |
| Motor | ||
| Spindle motor | HP | 1.5/2 |
| Pack size | ||
| Net weight | kg | 850 |
| Packing size | mm | 1550x1150x1980 |
