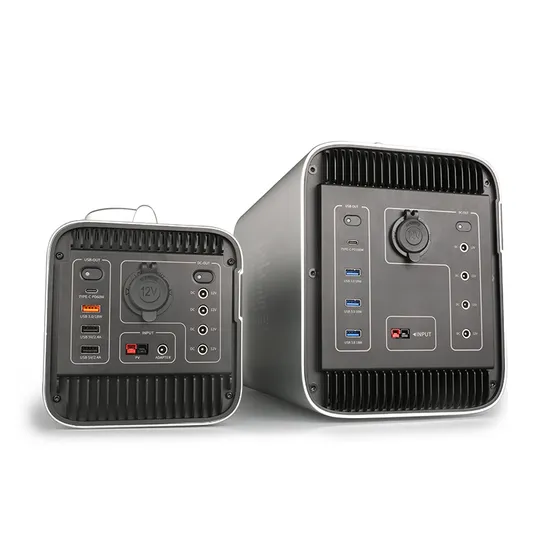

Portable Storage System USB Type 600W For Outdoor Camping
| Output | Specification |
| USB (no protocol) output port parameters | Output voltage | 5V±5% |
| Ripple noise | 150mVp-p |
| Output rated current | 2.4A |
| Output overcurrent protection | 2.55A |
| Full load efficiency | 85% |
| Output short circuit protection | OK |
| USB (QC3.0) Output port parameters | Port protocol | Apple 2.4A ,Samsung-5V-2A ,DCP- 1.5A, QC2.0 , QC3.0Samsung-AFC-9V- 12VHuawei-FCP-9 V- 12V-24W ,Huawei-SCP. |
| Output voltage | 5V/9V/ 12V±5% |
| Ripple noise | 150mVp-p |
| Output rated current | 5V/3A,9V/2A, 12V/ 1.5A |
| Output overcurrent protection | 1.65A |
| Full load efficiency | 85% |
| Output short circuit protection | OK |
| Type-C Output port parameters | Port protocol | PD 60,DCP 1.5A,Apple 2.4A,QC 3.0,QC 2.0; |
| Output voltage | 1V±5% |
| Ripple noise | 150mVp-p |
| Output rated current | 3.0A |
| Output overcurrent protection | 3.1A |
| Full load efficiency | 85% |
| Output short circuit protection | OK |
| AC output port parameters | Output voltage | 220V±10%&110V±10% |
| Output voltage frequency | 50Hz±2Hz/60Hz±1Hz |
| Output waveform | Sine wave |
| Rated Output Power(AC) | 600W |
| Output short circuit protection | OK |
| | |
| Full load efficiency | 91% |
| Overload protection | 700W |
| Inverter over temperature protection | 80ºC |
| DC12V (5.5*2.1mm) ,Cigarette lighter output port parameters | Output voltage | 12V- 13.4V |
| Output rated current | 10A |
| Output overcurrent protection | 13.5A |
| Full load efficiency | >85% |
| Output short circuit protection | OK |
