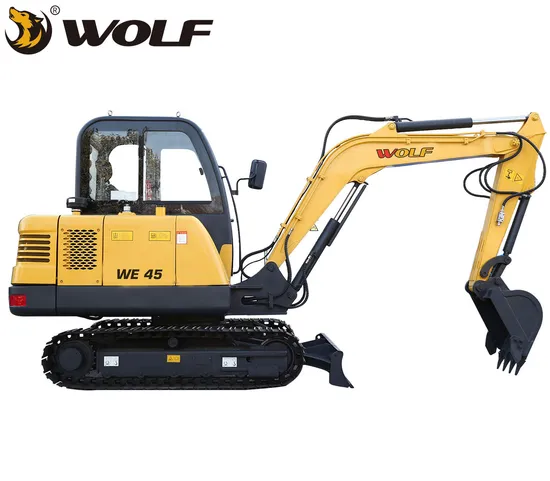

Wolf 4 Ton Construction Hydraulic Digger We45 Crawler Excavator Made in China

Product Description

Product Description
Standard configuration: With Yanmar 4TNV88 engine,33.7KW,
4-cylinder, KYB Japan pump and
motor,Italian valve ,pilot control lever,
Air-cool, standard backhoe bucket
Excavator has been widely used in road construction, bridge construction, urban construction, airport port and water conservancy construction. So excavators have both bulldozers, loaders, cranes and other functions, can replace these mechanical work. WE45 excavator can help you do these works.
Learn more from the detail information:
Product Parameters
Specification:

Excavator model		WE45
Operate weight (kg)		4200
Bucket capacity (m3)		0.14-0.18
Engine model		Yanmar 4TNV88
Engine power (kw)		33.7
Swing speed (rpm)		2200
Ground pressure (KPA)		33
Travel speed (km/h)		4.4/2.7
Tracking force (kn)		34.1
Grade ability (°)		30
Main dimensions	Superstructure width (mm)	1500
	Undercarriage width (mm)	1630
	Boom Length (mm)	2650
	Arm Length(mm)	1600
	Overall Height with cabinet(mm)	2455
	Clearance under counter weight(mm)	585
	Tumbler Distance(mm)	1710
	Rear swing radius (mm)	1600
	Overall length for transportation(mm)	5560
	Ground clearance (mm)	350
Working range	Max.digging radius (mm)	5720
	Max.digging depth (mm)	3700
	Max.digging height (mm)	5050
	Max.dumping height (mm)	3500
	Max.dozer cutting depth (mm)	380
	Max.dozer lifting high (mm)	255

Packaging & Shipping
How to ship:
Using 40ft container to load, 40ft container can load 2 sets WE45 excavator.
After-sale service
The warranty is 1 year, starting from receiving the machine. Within the warranty, any part breaks because of quality issue, except man-made damage, after confirmation, new part will be delivered to you for free, including freight.
