Automatic Two Channel Toilet Tissue Kitchen Towel Paper Cutting Machine Production Line Paper Cutter Price

Product Description

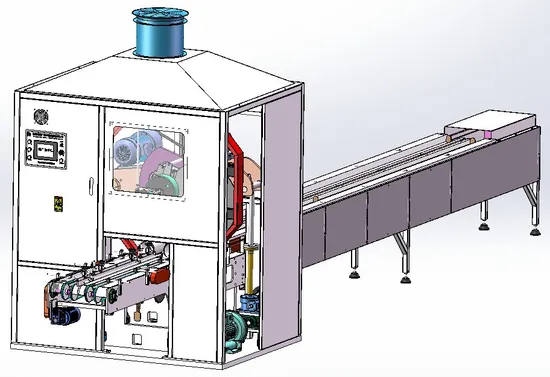

This machine is suitable for cutting toilet paper and kitchen roll.
Max working speed: 120 cut/min
Product Parameters

No.	Item	Technical parameter
1	Machine size Length*Width*Height	L7800×W1795×H2584
2	Length of feeding jumbo roll	less than 3000mm
3	Max size of finish roll (diameter*length)	135mm×300mm
4	Mix size of finish roll (diameter*length)	70mm×300mm
5	Design Speed	2×150/ cut/min
6	Production Speed	2×120/ cut/min
7	Paper cutting method	Swings circular knife movement and continuous controlled roll forward
8	Paper cutting channel	2 line
9	Paper cutter diameter	C610mm
10	Sharpening method	The cylinder pushes the grinding wheel to contact the circular knife to realize passive sharpening. The sharpening parameters can be adjusted and controlled by touch screen
11	Sharpening feed	Automatic sharpening of the circular knife, automatic feeding of the grinding wheel, and parameters can be adjusted through the touch screen
12	paper roll length adjustment	±2mm,60mm-250mm Controlled by panel, control accuracy is ± 2mm, cutting length range is 60-250mm
13	Tolerance of cut surface	±2mm
14	outlook of finish product	No causes dirt, broken, paper cut surface after cut off neatly
15	power	total power15KW
16	Mini. air pressure requirements	0.6Mpa
17	air consumption	50L/ shift
18	Drive	Independent motor
20	Paper roll input	Servo control,Pushing palm put forward
21	Cutter rotation	Frequency conversion Timing belt drive
22	Knife arm rotation	Frequency conversion Timing belt drive
23	Paper roll output	Frequency conversion motor drive, circular belt transmission
24	Machine weight	4500 kg
25	Protection	Main transmission parts are protected by protective covers
26	Peripheral	Security door lock protection, overload protection

List of roll paper cutter parts

No.	Parts name	num	Material/Specification	note
1	rack	1 set		Steel plate erector type
2	Feed frame	1 set		two channel
3	outpot frame	1 set		two channel
4	Paper roll and paper clamp mechanism	3 sets		two channel
5	Circular knife assembly	1 set
6	Sharpening device	1 set
7	Circular knife height compensator	1set
8	Dust removal and ventilation system	1set
9	Detection diameter alarm mechanism	1set
10	Central cooling and exhaust system	1set
11	Electric control cabinet	1set
12	Servo drive	1set	Mitsubishi	Install in control cabinet
13	PLC PLC program controller	1set	Mitsubishi	Install in control cabinet
14	inverter	1set	Delta	Install in control cabinet

Replacement cycle of main spare parts

No.	Name	Life	Remark
1	transmission belt	6 months
2	Knife grinder	2 months
3	Large circular knife	Depending on the paper
4	Pushing palm	Avoid diameter size feeding

Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
IMAKO has been dedicated to sanitary tissue packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
After Sales Service Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery:50 days upon receiving deposit.
Guarantee:One year.(The following problems are excluded from the warranty:due to accidents,misuse,misapplication,storagedamage,negligence,or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
After service:If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
