A400-4h-13 Quadplex Solventless Lamination Line Two-Layer Three-Layer and Four-Layer Solventless Lamination in One Pass Multi-Functional Laminating Machine

Product Description

A400-4H-13 Quadplex Solventless Lamination Line two-layer three-layer and four-layer solventless lamination in one pass Multi-functional laminating machine

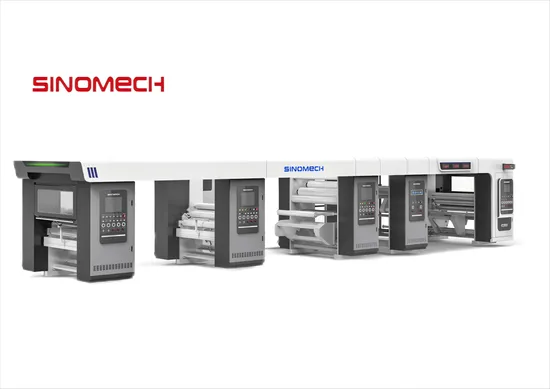

Model A400-4H Solventless Laminating Machine, developed by Sinomech Corp., is suitable for all flexible materials, including plastic films, matalized films, Al foils and light papers. Product Parameters Product Parameters

Model NO.	A400-4H-13
Mulching Modes	Two-Layers/Three-Layers/Four-Layers Lamination
Membrane Material	BOPP/CPP/PET/PE/VMPET/VMCPP/BOPA/AL etc.
Max.Laminating Speed	400m/min
Max web width	1050/1300/1500mm
Max Unwinding Dia	800mm

Max Rewinding Dia	800mm
Core ID	3"or 6"
Installation power	50KW
Machine weight	About 8,000 kg
Machine dimensions	5000(L)x2580(W)x2280(H)mm
Machine color	Sinomech standard or as requested

Materials to be laminated

Materials	Thinkness
BOPP	18-30 µm
CPP	18-30 µm
PET	12-30 µm
PE	30-120 µm

VMPET	12-30 µm
VMCPP	18-60 µm
BOPA	15-30 µm
AL	6-9 µm

Company Profile Company Profile Sinomech Corporation, established in 2007, with the headquarter in Guangzhou, is the Chinese leading supplier of solventless laminating equipment and other related machines.
Exhibition Show Exhibition Show We are a Chinese laminator manufacturer. In order to keep ahead of the lamination industry, we participated in many exhibitions at home and abroad.
Certifications Certifications Sinomech has received international certificates of ISO9001, ISO14001, ISO45001, and ESG, etc. All the products are conformed to CE safety standards.
