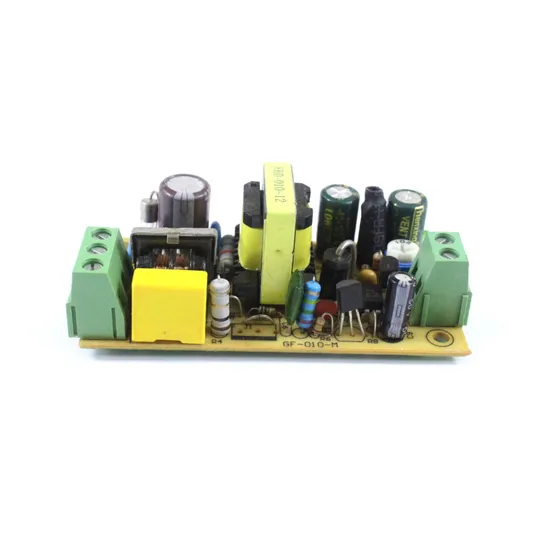

Multifunction AC 85-264V to DC 3.3V 5V 12V 1A 2A 3A Switching Mode Power Supply for CCTV

Product Description

multifunction ac 85-264v to dc 3.3v 5v 12v 1a 2a 3a switching mode power supply for cctv

Features:
Output power:5V DC MAX
Protections: Short circuit/Over load/Over voltage
100% full loading burn-in test 1 year warranty

MODEL		GF10-1E-DE	GF10-1H-DE	GF10-1G-DE	GF10-1B-DE	GF10-1L-DE	GF10-1C-DE
OUTPUT	DC VOLTAGE	3.3V	12V	5V	24V	36V	48V
	OUTPUT POWER	10W	12W	12W	12W	12W	12W
	CURRENT RANGE	3A	1A	2A	0.5A	0.3A	0.25A
	RIPPLE & NOISE(max.)	100mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	85 ~ 264VAC
	AC CURRENT(Typ.)	0.35A/ 116VAC 0.18A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	72%	78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	DIMENSION	L90*W28MM
	WEIGHT	200PCS/Carton/20KG
	SHELL MATERIAL	NONE

MOQ-
No limited

Many power models-
5 Watts - 1800 Watts

Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).

New Design-
We have professional engineer to make new design as your speical requirment.

Good quality-
We have the best professional and experienced engineer and the strict QC system.

Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.

Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.

Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.

Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.

---
