PMC-53A-E DIN96 Class 0.5S Three-Phase Multifunction Panel Meter for Electricity Energy Measurement with LCD RS-485 Ethernet

Product Description

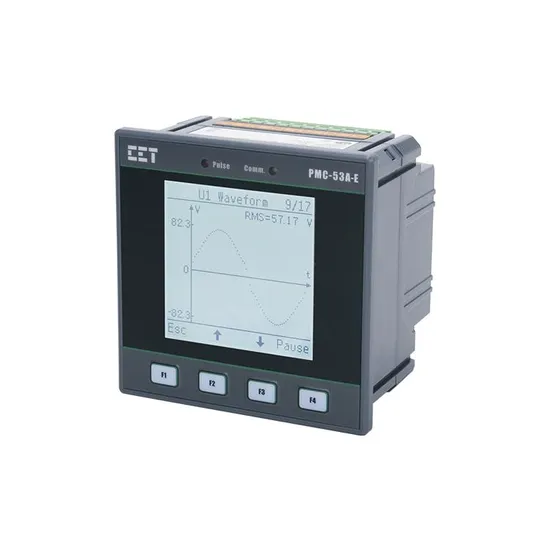

CET PMC-53A-E 3 Phase LCD Optional Split-Core CT Inputs Ethernet Multifunction MeterThe PMC-53A-E Ethernet Multifunction Meter is CET's latest offer for the digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications requiring direct Ethernet connectivity. The PMC-53A-E features quality construction, multifunction measurements and a large, backlit, Dot-Matrix LCD that is easy to navigate and user friendly. Compliance with the IEC 62053 22 Class 0.5S and ANSI C12.20 Class 0.2 Standards, it is a cost effective replacement for analog instrumentation and is capable of displaying 4 measurements at once. It also optionally provides an I4 input for Neutral Current Measurement, one 0/4-20mA Analog Input for measuring external transducer signal as well as an Ir Input for Residual Current Measurement. With a standard 100BaseT Ethernet Port and a RS-485 port supporting multiple protocols, the PMC-53A E can be easily integrated into Energy Management Systems as well as Building and Utility Automation Systems. The on-board password protected Web Server provides user-friendly access to its data and supports the configuration for most of the Setup parameters via a standard web browser.

Typical Application

• Industrial, Commercial and Utility Substation Metering • Building, Factory and Process Automation• Sub-metering and Cost Allocation• Retrofit applications with optional Class 0.5 Split-Core CTs

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.

---
