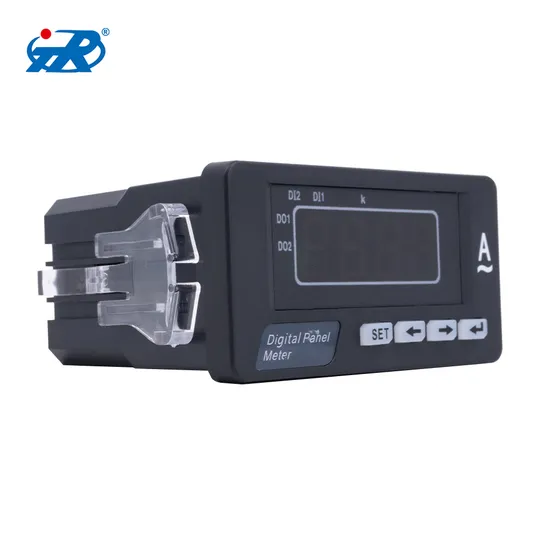

Analog and Digital Electronic Unit Digital Panel Indicator Coulomb Ampere Meter Digital Single Phase Digital Current Meter

Product Description

Product Description
Performance Characteristics High precision measurement of single phase AC/DC current
Provide the digital tube display, local data query
Programmable CT ratio
Support for RS-485 communication, Modbus-RTU protocol
Support for switch input, output, analog transmitting output
A variety of dimensions to meet the different requirements of the electric distribution boxAccuracy of Measurement Current: level 0.5Signal InputConnection Mode: single phase two wires
Rated Current: AC1A,AC5A, DC0-10A
Overload Voltage: 1.2 times (Continued), 2 times / second (instantaneous)
Power Consumption:current:<0.4VA/phase
Impedance: current: <20mΩ
The Frequency: 45-65Hz or DCAuxiliary Power Supply Working range AC 220V
Power Consumption: <4VAFunction Module Communication Interface: 1 way RS-485 communication, Modbus-RTU protocol
Baud Rate: 1200-9600bps, the default is 2400bps
Switch Input: 2 ways
Switch Output: 2 ways(capacity: AC 250V /5A, DC 30V/5A)
Transmission Output: 1 ways(analog output: 0/4-20mA or 0-5/10V)

Selcction of Specification
Digital Intelligent Single phase AC Ampere Meter(9999 display programmable)
Model NO.	Display	Frame size(mm)	Hole size(mm)	Communication interface
TS-AA11/ DA11	Digital Single-row LED	160*80	152*76	1 way RS-485 communication, Modbus-RTU protocol
TS-AA21/ DA21		120*120	111*111
TS-AA31/ DA31		96*96	92*92
TS-AA41/ DA41		120*60	114*56
TS-AA51/ DA51		96*48	92*45
TS-AA61/ DA61		72*72	68*68
TS-AA71/ DA71		80*80	76*76
TS-AA81/ DA81		48*48	45*45

To connect the single phase current signalinput
Auxiliary Power Supply:AC220V(Customizable:AC/DC 85-265V or DC)
Easy installation.
Detachable terminals

---
