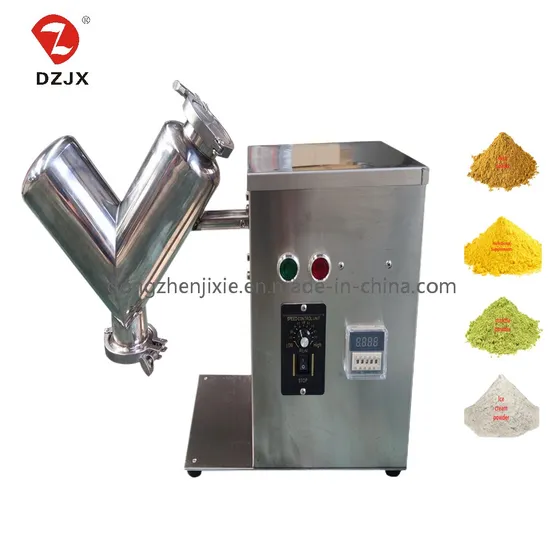

Dzjx Vertical V-Type Mixer for Forced Mixing Granules Powders and Bulk Materials

Product Description

Product DescriptionDZJX Vertical V-Type Mixer for Forced Mixing Granules Powders and Bulk Materials
V Shape Mixer applied to good liquidity dry powder and granular material mixing in pharmacy industry, chemical industry, food industry. This machine mixing cylinder structure special, efficiency is high, no blind angle,material adopt stainless steel, wall polishing treatment, nice,appearance,equally mixing. The material in the V-type mixing container flows smoothly without damaging the original material.It can be designed as single arm or double arm according to customer requirements. Product Parameters
Working Principle
The V-shaped barrel drives the reducer with an electric device, and drives the shaft to rotate through the gear link, and makes a 360° rotational motion in the barrel. The material in the barrel also moves horizontally, diagonally, diffuses, etc. with the rotation of the barrel. The material can be fully mixed within 10 minutes after a variety of movements are performed alternately. For users who need automatic feeding, they can quickly draw the material into the barrel of the machine through the combined vacuum feeder. For materials that are easy to agglomerate and have poor fluidity, the machine can also be equipped with a forced stirring part, which is equivalent to adding an additional force inside the machine to act on the material, so that the material can be fully mixed.

Model	Total volume(L)	Loading capacity(kg/batch)	Inlet diameter(mm)	Power(kw)
DZV2	2	1	76	0.04
DZV5	5	2.5	76	0.55
DZV8	8	4	76	0.55
DZV14	14	7	108	0.55
DZV20	20	10	108	0.75

Other models can be customized

Model	Total volume(L)	Capacity(kg/batch)	Mixingtime(min)	Power(kw)
DZV180	180	40	4-8	1.1
DZV300	300	60	6-10	1.1
DZV500	500	100	6-10	2.2
DZV1000	1000	200	6-10	4
DZV1500	1500	300	6-10	5.5
DZV2000	2000	400	6-10	7.5

Other models can be customized
https://dongzhenjixie.en.made-in-china.com/contact-info.htmlDetailed Photos
Our AdvantagesHigh mixing efficiency, no dead angle This machine has high mixing efficiency, no dead angle, and can be polished inside and outside, meeting GMP requirements.Can avoid dust leakage and flying The bottom of the machine uses a stainless steel butterfly valve for unloading, which can largely avoid dust leakage and flying.
Simple operation, automatic timing device The equipment is easy to operate, with common buttons including on, off, emergency stop, reverse, and inching. It also has an automatic timing device that can automatically shut down at a set time.Wide range of forced stirring devices It is applicable to a wide range of materials and can be equipped with a forced stirring device to be suitable for mixing finer powders, lumps, and materials containing a certain amount of humidity.Applications
V type mixer is suitable for pharmaceutical, chemical, food and other industries.
Medicine : a mixture of capsule granules,Chinese medicine seasonings, powdered and granulated Chinese herbal medicines.
Feed : It can be used for the mixing of various feeds such as fish feed ,poultry feed, wild animal feed, and bird feed,
Food : such as seasonings, additives, vitamins, various sugar products,etc.
Fuel : a mix of various firecrackers, pyrotechnics and other raw materials.
Ore : a mixture of various powdery or granular ores.
Packaging & Shipping
After Sales Service* One year guarantee for whole machine.
* 24 hours technical support.
* Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
* After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
Company Profile Xinxiang Dongzhen Machinery Manufacturing Co., Ltd.
Is an innovative private enterprise integrating technology research and development, processing and manufacturing, and trade services. The company is mainly committed to the design, manufacture, installation and commissioning of equipment such as grinding and crushing, screening and conveying, and other related supporting products. At the same time, it undertakes industry information consulting, system solution planning, and related project development.
The company produces grinding, crushing, screening, conveying, environmental protection, thermal power and other types of mechanical equipment, including five categories, more than 60 series, more than 800 models and specifications, which are widely used in coal, electricity, metallurgy, mining, chemical industry, building materials and other industries. It has a good sales market at home and abroad, with customers all over the country and exported to Russia, Japan, Indonesia, Southeast Asia, CIS and other countries and regions, and has won wide praise from new and old customers at home and abroad. All products of our company are reasonably designed, made of exquisite materials, well-made, and have superior performance. They are ideal products selected by various related industries.

---
