Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.0mm
Specification
2800x1030x1600mm
Production Capacity
300 PCS Per Month
Product Description

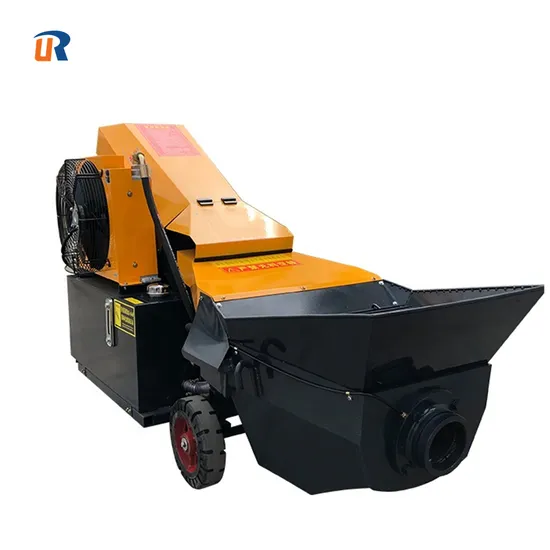

Portable Concrete Pump Diesel Small Concrete pump machine, 8m3/h capacity, pumping height 15mts. Equipped 15 KW electrical motor, improved the continues pumping performance.New design, good Choice!
Product Description
No.
| Item
| Unit
| UR-CP7D
|
1
| Aggregate Size
| mm
| ≤ 30
|
2
| Vertical pumping distance
| m
| 15
|
3
| Horizontal pumping distance
| m
| 30
|
4
| Capacity
| m³/h
| 7
|
5
| Oil pump
| mm
| 40
|
6
| Diesel engine
| kw
| 490D 4 Cylinder 28kw
|
7
| Diesel tank
| litre
| 30
|
8
| Oil consumption
| L/H
| 4
|
9
| Battery
| pcs
| 12V 45Ah 2pcs
|
10
| Material cylinder diameter
|
| Φ120
|
11
| Material cylinder stroke
| mm
| 600
|
12
| Hopper height
| mm
| 500
|
13
| Dimension
| mm
| 2800*1030*1600
|
14
| Total weight
| kg
| 1000
|
Product Detailes
Packaging & Shipping
After Sales Service
1. We have done testing machine before shipping.
2. Support video operating indication, english manual, online technical support.
3. We promise 12 months warranty. Wearing parts not includes.
4. Necessary installation service if required. But you should pay the person flight cost and salary $100/day.
Company Profile
FAQ
1. How to choose the pumps?
R: According your demands working capacity, have small model 7m3/h, large models 15m3/h,25m3/h,35-40m3/h. Confirm your capacity!
R: according your pumping height and length demands.
R: according power - 2types, Diesel & Motor power, tell us what you prefer?
2. What the minimum order qty? the delivery time?
R: Qty 1PC at least.
R: 1pc pump machine within 7-10days, 2-5pcs pumps within 10-15days.
3. Why you choose us?
R: we use all Brand equipments, such as Huadong Diesel engine, Japan pump,brand motor and electrics, cylinder, heavy steel. Ensure
the pump with longer use life.
R: so do not compare only price, choose high quality choose us.
4. How long the Warranty? how you do the after-sales service?
R: we promise 12 months warranty.
R: support video operating indication, English manual,online technical support.
>>
