Viboo 2000 Kg Capacity Plus Absorbing Size Plug-in Vacuum Lifter Metal Sheet for Laser Cutting Machine

Product Description

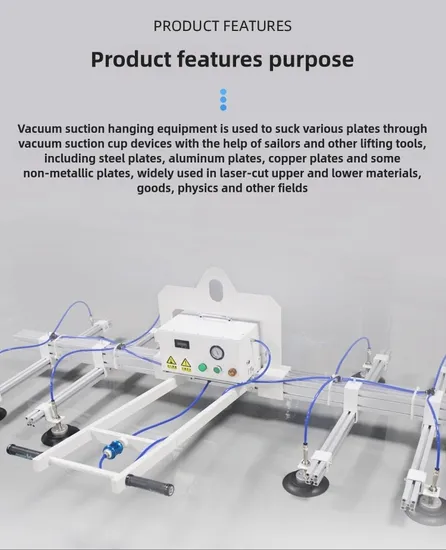

Viboo 2000KG Capacity Plus Absorbing Size Plug-In Vacuum Lifter Metal Sheet For Laser Cutting Machine is a high-efficiency,safty,convenient,durable automatic equipment. It applied to the vacuum adsorption and the vacuum pump also with high-quanlity suction cups that made up this firmly vacuum technology system.Our vacuum lifter suitable various workpieces(such as glass, iron plates, etc.)Picked up the material and transported the workpieces to the working position through the rotation arm.
Features & Advantgaes:
Point 1: Plug-In Vacuum Lifter widely suitable on metal sheet for the laser-cutting machine.
Point 2: Suction Cups widely used in various material plates including of steel,aluminum,copper,and some non-metallic plates.
Point 3: Clear control panel on it which is with a switch button, a alarm for easy operation.
Point 4: With pneumatic hand plate valve applied to control the air flow .

Product Parameters
Items	Unit	VB-P1000	VB-P2000
Lifting Capacity	kg	1000
Cup Qty	/	12	20
Single Cup Diameter	mm	Φ200
Absorbing Size	mm	6000*2000	6000*2000
Rotation	/	360° manual rotate
Voltage	V	AC 220V / 380V
Charger	V	AC220/110 customized
Weight	kg	127	275
Sucker Frame Size	mm	5000*1000*600	5000*1000*600
Control System	/	Integrated Control Cabinet and Wired Remote Control
Overall Size	mm	1230*1030*370mm, packed by wooden box
Gross Weight	kg	150	160

Application
Viboo 2000KG Capacity Plus Absorbing Size Plug-In Vacuum Lifter Metal Sheet For Laser Cutting Machine are incredibly versatile and can be used in a wide range of applications:
Material Handling:
Loading and Unloading: Moving materials like sheets, plates, and boxes onto and off conveyor belts, trucks, or machines.
Stacking and Sorting: Organizing and arranging products in warehouses or production lines.
Assembly Lines: Assisting in the assembly of products by holding and positioning parts.
Construction and Manufacturing:
Lifting Heavy Panels: Handling large, heavy panels such as metal, glass, or plastic in construction and manufacturing settings.
Concrete Panels: Moving and positioning concrete panels for construction projects.
Metal Drums and Barrels: Handling and transporting metal drums and barrels in industrial environments.

---
