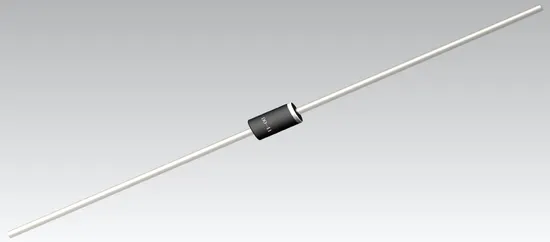

Her101--Her108 1A 1000V Discrete Semiconductors Diodes Rectifiers Fast Recovery Rectifiers Do-41

Product Description

FAQ:1, Are you Manufacturer or trading company? We are a manufacturer only in diode, bridge rectifiers and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost. AND ZG WILL LIKE TO ASSURE ALL THE CUSTOMERS THAT WHATEVER IS WRITTEN ON THE LABEL OF THE PRODUCT IS 100% TRUE 2. May I have some samples for testing? Yes, OF COURSE. We offer free samples for our customers and they only need to pay the freight for samples. If you have order with us, we will deduct the freight from your first order. 3. What about the delivery ? Usually the lead time is about 1-3 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time. 4. What about the payment terms ? Order amount is less than $10000: 80% Advance,and 20% before shipment. Order amount is between $10000 and $20000: 50% Advance and 50% before shipment. Order amount is more than $20000: 30% Advance and 70% before shipment. 5. What about the shipment terms ? FOB Shanghai by sea;
We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

Parameter	Symbols	HER 101	HER 102	HER 103	HER 104	HER 105	HER 106	HER 107	HER 108	Unit
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	600	800	1000	V
Maximum RMS voltage	VRMS	35	70	140	210	280	420	560	700	V
Maximum DC blocking voltage	VDC	50	100	200	300	400	600	800	1000	V
Maximum average forward rectified current	IF(AV)	1.0								A
8.3 ms Non-repetitive peak forward surge current 8.3 ms singlehalf sine-wave	IFSM	30								A
@IF=1.0A Maximum forward voltage	VF	1.0			1.3		1.7			V
@VDC TA= 25ºC Maximum reverse current	IR	5.0								μA
IF=0.5A , IR=1.0A ,IRR=0.25A MAX. reverse recovery time	Trr	50					75			ns
Typical thermal resistance (Note 1)	RθJA	65								ºC/W
Operating junction and storage temperature range	Tj, TSTG	-55 --- +150								ºC

---
