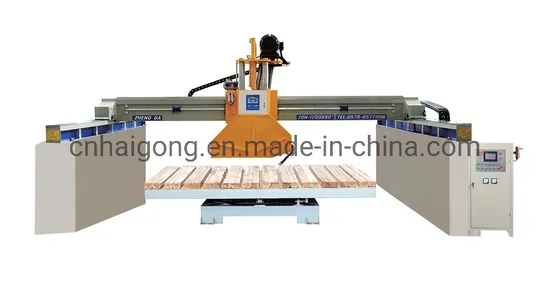

Infrared Automatic Bridge Cutting Machine Zdh-1200 Middle Block Stone Cutter

Product Description

Infrared Automatic Bridge cutting machine ZDH-1200 Middle Block stone cutterInfrared Automatic Bridge Cutter for Middle Block is a type of gravity machine, the Middle block cutting is the best choice to cut the tombstones , curb and so on in the stone processing. The bridge saw is adopts by laser to cut, the cutting speed by inverter control.
STRUCTURE AND FEATURES: This equipment adopts guide movement with highly precision grinding and manual scraping, the main parts are processed by heat treatment, the main beam and side beam are smoothed by oil immersed lubricating. It adopts by infrared to cut, the cutting speed by inverter control to achieve stepless adjustment, the head movements, table title up, rotation and position are used hydraulic transmission to move. And the main parts are imported with high quality, it can be cut by manually and fully automatic easily. It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning. The worktable can be stopped Automatic in 90,180,270,360 degree,by hydraulic rotation, and also can be locked in any position Manually. This machine is made of a good steel with high working accuracy and moving stable with long service life. It is applicable to cutting the valuable and large sized stone board for many specifications. MAJOR TECHNICAL PARAMETERS:

Max. Processing dimension	3000×2000×450 mm
Workstation rotation size	90 degree
Saw blade diameter	800-1200 mm
Main engine power	22 kw
Total power	27.2 kw
Outline dimension	6000×4700×4200
Weight	6500 kgs
Water consumption	4 m³/h

FAQ: 1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality.
Bridge Saw is one of our machines. 2. Where is your factory?
Our factory locates in Linhai City, it is 1 hours Taizhou airport, 30 minitues form Linhai or Taizhou train station. 3. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price 4. How long can I get my product?
Normally it takes 15 days to produce our products

---
