Product Description
Product Description
HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices
Product Description
Features for the HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices:
Technical Specification
Applicable scope:
60mA portable high frequency x ray machine
for medical diagnosis, use for human limbs
checking, diagnosing, especially used in
the wild flow places, battlefield, playground,
pet clinic, rescue diagnosis etc.
Input power Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω
Maximum output power P =110kV×36mA=4kW
Nominal power 100kV,40mA,0.1s,4kW
Frequency ≥40kHz
KV adjusting range 40kV~110kV, step adjustment is 1 kV
mA adjusting range 36mA~60mA
mAs adjusting range 1mAs-190mAs,shifted adjustment
S adjusting range 0.04s~3.2s
Toshiba X -ray tube Focus:0.5/1.6mm;
Anode heating capacity:35.5KJ
Size 290×260×230 mm
Weight 18.8kg |
Input power
| Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω
|
Maximum output power
| P =110kV×36mA=4kW
|
Nominal power
| 100kV,40mA,0.1s,4kW
|
Frequency
| ≥40kHz
|
KV adjusting range
| 40kV~110kV, step adjustment is 1 kV
|
mA adjusting range
| 36mA~60mA
|
mAs adjusting range
| 1mAs-190mAs,shifted adjustment
|
S adjusting range
| 0.04s~3.2s
|
Toshiba X -ray tube
| Focus:0.5/1.6mm;
Anode heating capacity:35.5KJ
|
Size
| 290×260×230 mm
|
Weight
| 18.8kg
|
Accessories
| 1.Remote control 2.Aluminum box
|

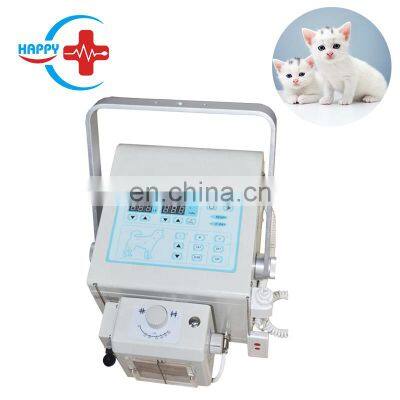

Pictures for HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices :
Packaging & Shipping
Company Information
Our Services
Contact
FAQ
1. How to place order of HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices product, What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
And also the delivery time depands on quantity. For HC-R005 Medical Portable veterinary 60mA medical x ray machine/Vet Digital portable veterinary x ray machine prices the delivery time is 10 working days .
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
>>
