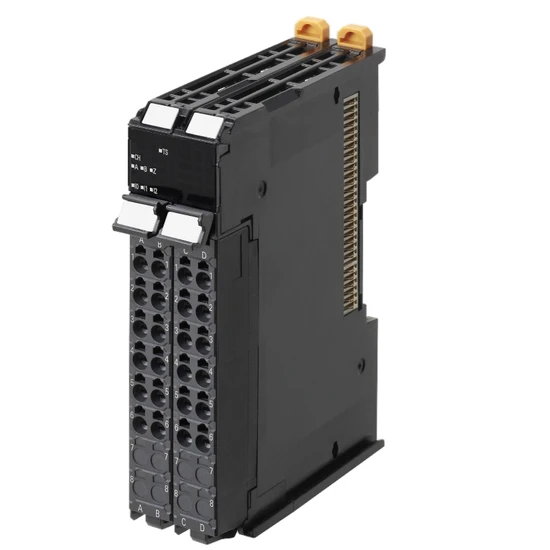

Nx-Ad3203 Ma Single Ended, Resolution 1: 8000, 250 µ S/CH, Screwless Push-in Connector PLC

Product Description

NX-series I/O covers a full range of units, including standard and high-speed digital I/O's, various performance levels in analogue I/O, encoder inputs and pulse outputs. The series is continuously expanded with e.g. time-stamped I/O, safety I/O, alternative bus systems and application-specific modules.
Ideal match with Sysmac Machine automation controllers Synchronous I/O updates, with less than 1 µs jitter High density: up to 16 digital or 8 analogue signals in 12 mm width Removable wiring terminals for easy system assembly and testing The NX I/O system offers a wide variety of I/O devices. Its ultra-fast internal bus system is synchronized when used with the Distributed Clock of the EtherCAT network. The resulting system-wide deterministic I/O operation allows machine builders to improve machine production rates and output quality. An EtherNet/IP bus coupler is available for non-synchronous use , e.g. with CJ-series PLC's.

I/O system	NX I/O Bus
Type of module	Analog I/O
Number of analog inputs	4
Temperature input type	None
Linear analog input type	4 to 20 mA
Resolution of the analog inputs	13 Bit
Input circuit type	Single-ended
Conversion time	1 ms/unit
Signal processing	Free running
I/O connection type	Push-in
Number of I/O connectors	1
Degree of protection (IP)	IP20
Product Height (unpacked)	104.5 mm
Product Width (unpacked)	12 mm
Product Depth (unpacked)	80.1 mm
Product Weight (unpacked)	70 g

---
