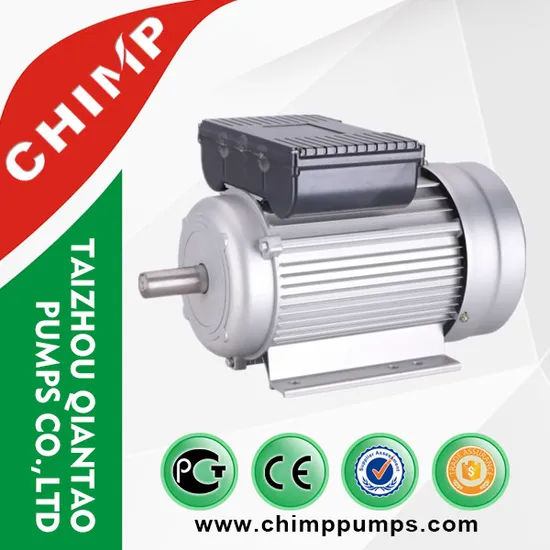

Ml Series Aluminum Housing Asynchronous AC Single Phase Dual-Capacitor Induction Electric Motor

Product Description

Feature:
YL series Single-phase two-value capacitor asynchronous motor is GB combined with international standards for design and manufacturing. Which is characterized by excellent starting and running performance. Low noise,small vibaration,compact structure,light weight and easy maintenance characteristics. Widely used in air compressors,pumps and other Mechanical equipment.
Mounting Structure:
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange

Type	Output	Rated current	Rated speed	η	Power factor	Locked-rotor current Rated current	Locked-rotor torque Rated troque	Pull-out torque Rated torque
	KW	IN(A)	nN(rmp)	(%)	(cos Φ)	Tst/TN	Ist/TN
ML711-2	0.37	2.73	2800	67	0.92	1.8	16	1.7
ML712-2	0.55	3.88	2800	70	0.92	1.8	21	1.7
ML801-2	0.75	5.15	2800	72	0.92	1.8	29	1.7
ML802-2	1.1	6.85	2800	75	0.95	1.8	40	1.7
ML90S-2	1.5	9.44	2800	76	0.95	1.7	55	1.7
ML90L-2	2.2	13.67	2800	77	0.95	1.7	80	1.7
ML100L-2	3	18.2	2900	79	0.95	1.7	110	1.7
ML711-4	0.25	2.02	1400	80	0.92	1.8	12	1.7
ML712-4	0.37	2.81	1400	62	0.92	1.8	16	1.7
ML801-4	0.55	3.88	1400	65	0.92	1.8	21	1.7
ML802-4	0.75	5.22	1400	68	0.92	1.8	29	1.7
ML90S-4	1.1	7.21	1400	71	0.95	1.7	40	1.7
MS90L-4	1.5	9.57	1400	73	0.95	1.7	55	1.7
ML100L1-4	2.2	13.9	1400	76	0.95	1.7	80	1.7
ML100L2-4	3	18.6	1400	77	0.95	1.7	110	1.7

Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.
We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.
Customers' satisfaction is the everlasting pursuit of "Qiantao" staff. Quality and credit standing is the forever main topic of Qiantao. We sincerely wish to cooperate and develop together with all partners. At the same time, we warmly welcome the new and old customers from home and abroad to do business with us and direct us.
At all times, Qiantao Pump Company is appling ourselves to normalized technology development and quality management construction. We constantly solidify, perfect and improve the company's total quality management standard. We also popularize ISO9000 quality management system. These not only uprise the management standard, promise the product quality, strengthen the running belief of "Customers' satisfaction is Qiantao people's persistent pursuit. Quality and credit standing is the forever main topic of Qiantao.", but also win the customers' trust.

---
