Standard Duty PVC Layflat Hose for Farm Agriculture Irrigation

Product Description

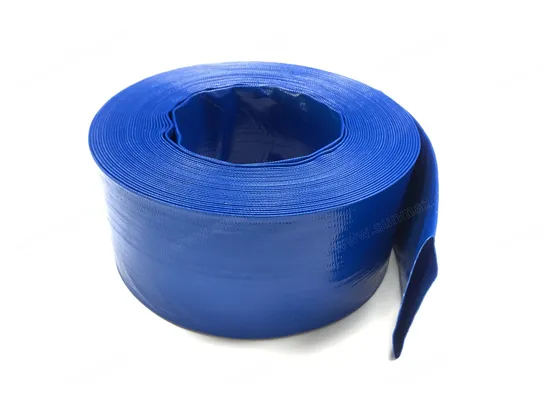

Standard Duty PVC Layflat Hose for Irrigation
Product Description Standard duty PVC lay flat hose is also called layflat water hose, pool and spa backwash hose, pump water hose; dewatering hose etc. Which is designed for low pressure liquid delivery.
Product Parameters

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	22.4	4	60	16	240	100	100
1	25	27.4	4	60	16	240	140	100
1-1/4	32	34.4	4	60	16	240	160	100
1-1/2	38	40.2	4	60	16	240	180	100
2	51	53	4	60	12	180	220	100
2-1/2	64	66.2	4	60	12	180	300	100
3	76	78.2	4	60	12	180	360	100
4	102	104.5	4	60	12	180	550	100
5	127	129.7	4	60	12	180	750	100
6	153	155.7	3	45	9	135	900	100
8	203	207	3	45	9	135	1600	100
10	255	259.8	3	45	9	135	2600	100
12	305	309.7	2	30	6	90	3000	100
14	358	364	2	30	6	90	5000	50
16	408	414	2	30	6	90	6000	50

Application Designed for light duty discharge of liquids in agriculture, construction, civil engineering, mining, tank trucks, and water delivery at light working pressures in irrigation systems. Can also be used as jacket for cable or rope protection irrigation systems. Can also be use d as jacket for cable or rope protection.

---
