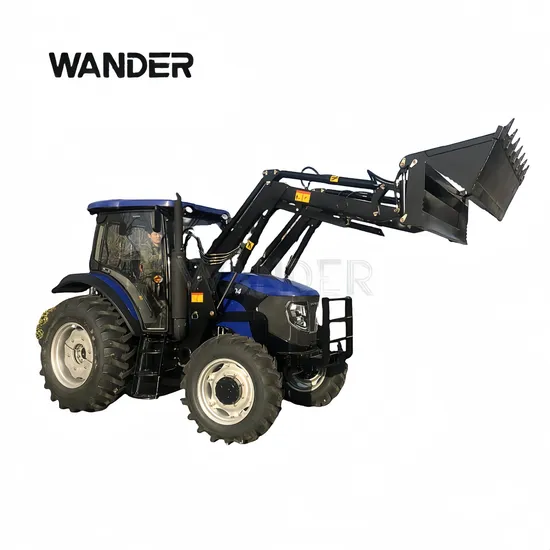

4in1 Front End Loader, Tractor with 4in1 Bucket Loader, Front End Loader with Standard Bucket

Product Description

Product Description
FRONT END LOADER Used widely for Loading, grading, grabbing, transporting, clearing debris after storms, transferring soil, gravel and other materials, relocating dead trees, forklift attachment for lifting machinery and transporting hay bales.

FRONT END LOADER Quick release Arms design, high lifting, self-leveling for extra safety, quick release bucket for easy use with available attachment, 4 in 1 combined bucket, grating cover bucket, timber grab and bale spike attachments available, high control for precision loading, easy to handle hydraulic control panel, support legs when detached.

Front end loader Main Characters Summary:

-TZ series front end loader for tractor 16hp - 150hp tractors.

-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.

-Standard level lift.

-Special requests on the the size of bucket are available

-Quick release bracket and it is very easy for installation.

-Quick release attachment which can work with others Extensive implements(4 in 1 Bucket,
Pallet Fork, Bale Clamp and Wood Grapple are available on it).

-Adopt Germany technical and with CE certificate

-It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient
for operation and service.

-Perfect painting and finishing in details.

Product Parameters

Technical Data of Front Loader
	Model	TZ02D	TZ04D	TZ06D	TZ08D	TZ10D
	Tractor model	16-30HP	25-55HP	45-90HP	75-130HP	120-180HP
A	Height-measured at arm pivot point (mm)	2600	2700	2800	3100	3080
C	Max. dump height (mm)	1800	2000	2100	2350	2350
D	Dump distance (Max. dump height) (mm)	700	800	900	1100	1100
E	Dump angle (°) (Max. dump height) (mm)	42~45	42~45	42~45	42~45	42~45
F	Distance to the centre of front-wheel (mm)	1800	1900	1900	2300	2400
G	Rollback angle on ground (°)	30	32	32	34	34
H	Max. digging depth (mm)	100	120	140	180	180
	Bucket width (mm)	1400	1500	1700	2000	2200
	Bucket capacity (m3)	0.18	0.3	0.35	0.48	0.6
	Rated lifting Capcity (Kg)	360	460	550	850	1080
	Self weight(kg)	470-600	500-680	530-720	680-830	800-930

Log grabber,quick releae on the front loader
Bale sepears,quick releae on the front loader
Pallet forks,quick releae on the front loader
Silage soft hands, quick releae on the front loader
Packaging & Shipping
1. If tractor fit with front end loader, one 40HC hold 3units drive inside.

2. If only front end loader in iron crate packing one 40HC can hold 27units.

---
