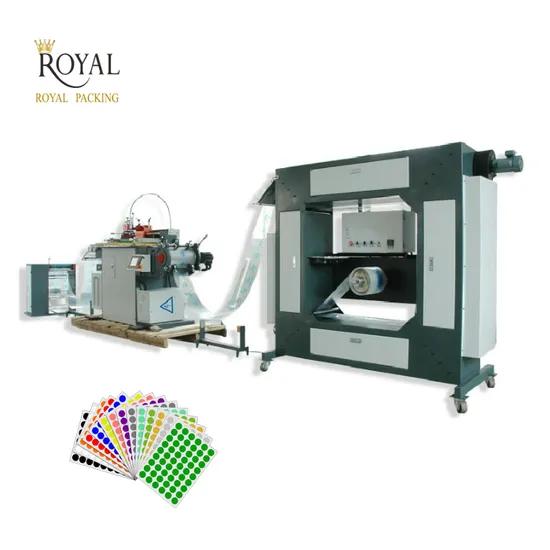

Fully Automatic Roll to Roll High Accuracy Serigraphy Automatic Screen Printing Printer Machine

Product Description

Performance:
This machine is widely used in PET, PVC, transfer paper, film, trademarks, self-adhesive labels and other roll materials. Silk screen printing, can be overprinted multiple times, the prints are full of ink and have clear lines
The machine is used for printing reel material, such as PVC, OPP Dacron, Security mark, adhesive tape, etc. The material towing is controlled by servo motor, the main machine driving part adopts pneumatic device, and the web-guiding is tracked by photocells. The machine has the characteristics of high accurate color register, steady material feeding, automatic counter and compact structure, etc.
1. This machine is designed with a high-quality cylinder (Mitsubishi, Japan), which facilitates the printing operation of loading and wiping the screen.
2. Using double linear guide rails (ABA from South Korea) and rodless cylinders (Yaskawa Servo) as the printing drive, the transmission is smooth and the printing pressure is uniform, ensuring that the printed screen lines are reproduced without distortion.
3. Use Japanese Mitsubishi high-precision servo system and photoelectric alignment detection and control system to ensure the accuracy of secondary overprinting.
4. Using touch screen human-machine interface, the operation is flexible and convenient.
5. Ir hot air drying system uses central heat source and hot air circulation to ensure that the printed matter is heated evenly and does not deform.
6. Use Japanese Mitsubishi PLC programmable controller and Omron sensing components to ensure high reliability of the control system.

Specification:
1.It is applicable for printing various kinds of role special materials , such as PTT,PVC,transfer paper,membrane,circuit board,telephone keystroke,membrane switch,non woven fabrics ,logo,adhesive label,aluminum foil,copper foil and other role materials.
2.Touch screen operation , more convenient.
3.Computer controlling , with automatic electric eye tracking and positioning, high precision of repeating positioning . Can repeating positioning many times, accurate in coloring ,easy operation, and can improving the printing quality.
4. Can set up printing speed flexible, counting printing number, and stop automatically after set the printing number .
5. Adopting precision liner slide rail and roller ball pylori.
6. Drying by servo motor .
7. Can adjusting the screen size about 10 mm more or less.

Technical parameters and configuration

Model	RYBS-QJZ320	RYBS-QJZ420
Printing size	300 x 300 mm2	400 x 500 mm2
Screens frame size	450 x 550 mm2	500 x 750 mm2
Printing bedplate size	360 x 450 mm2	460 x650 mm2
Max. printing material width	320mm	420mm
Winding/unwinding material diameter	500mm	650mm
Core of material	75mm	75mm
Printing speed	4200 cycle / h	3500 cycle / h
Printing accuracy	0.002mm	0.002mm
Pressure of compressed air	0	6~8kg/cm2
Squeegee servo motor	0	0.75Kw
Pulling servo motor	1Kw	1Kw
Power	220v/2.2kw	220v/2.5kw
Machinery size	2300 x 800 x 1600	2800 x 1100 x 1600
Machinery weight	750kg	1500kg

---
