DR-AP-6018-S-A QCN9074 WiFi Card OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G

Product Details

Product Description

Product Description
web:wallystech com
EMAIL:sales@wallystech.com
Wallys Communications (Suzhou) Co LTD
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards
products:
wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless
QCN9074/QCN9024/QCN9072
IPQ6010/IPQ6018/IPQ6000
IPQ4029/IPQ4019
DR-AP-6018-S-A
Support OpenWRT, Support:QCN9074 WiFi Card
Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G
Description

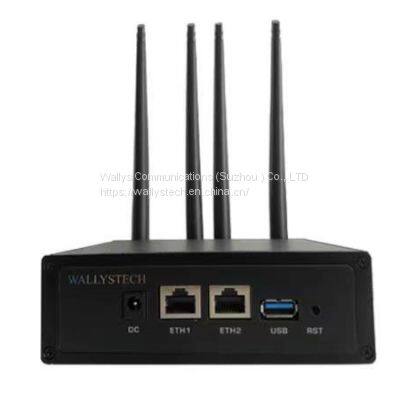

DR-AP6018-S-A is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR6018(IPQ6010) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 133x 128 x 44 mm
■ Aluminum alloy material
■ Support Wallys’ PCBA Mainboard

Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	24V~48V(DC Jack)	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory	1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
NGFF Slot	M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
SD Card Slot	1x SD Card Slot(Option)
USB /header	1x USB 3.0 Port(Option)
POE	24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack	24V~48V power supply
LED header	2.0 pitch pin header
Serial Port	1x Serial Port 4 Pin Connector
Wireless	On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors
Nor Flash	8MB
Nand Flash	256MB
DDR	256MB~512MB
Dimension	133mm x 128mm x 44mm

Radio TX Specifications(5180MHz-5825MHz)

Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
5Ghz 802.11ax HE20	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE400	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE80	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB

Radio TX Specifications(2412MHz-2482MHz)

Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
2.4Ghz 802.11ax HE20	MCS0	23dbm	26dbm	±2dB
	MCS1	23dBm	26dBm	±2dB
	MCS2	23dBm	26dBm	±2dB
	MCS3	23dBm	26dBm	±2dB
	MCS4	23dBm	26dBm	±2dB
	MCS5	23dBm	26dBm	±2dB
	MCS6	23dBm	26dBm	±2dB
	MCS7	22dBm	25dBm	±2dB
	MCS8	21dBm	24dBm	±2dB
	MCS9	21dBm	24dBm	±2dB
	MCS10	18dBm	21dBm	±2dB
	MCS11	17dbm	20dbm	±2dB
2.4Ghz 802.11ax HE40	MCS0	23dbm	26dbm	±2dB
	MCS1	23dBm	26dBm	±2dB
	MCS2	23dBm	26dBm	±2dB
	MCS3	23dBm	26dBm	±2dB
	MCS4	23dBm	26dBm	±2dB
	MCS5	23dBm	26dBm	±2dB
	MCS6	23dBm	26dBm	±2dB
	MCS7	22dBm	25dBm	±2dB
	MCS8	21dBm	24dBm	±2dB
	MCS9	21dBm	24dBm	±2dB
	MCS10	21dBm	24dBm	±2dB
	MCS11	19dbm	22dbm	±2dB

---
