Product Details
Product Description
Product Description
Product features:

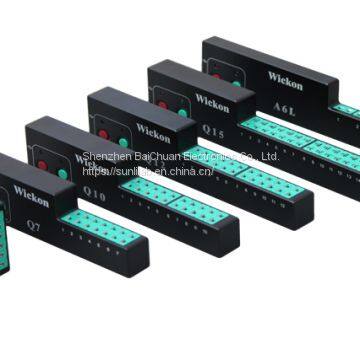

7sets of K high temperature thermocouple /7 channel temperature curve recorder
High efficiency, continuous storage data 24 groups of data, and download to the computer group analysis processing;
Analysis system can analyze data based on PC (Windows) and PDA (Pocket).
Power consumption is low, which is powered by lithium battery and can be used for more than 60 hours continuously. It is normally operated and used without deliberate charging for 365 days. Truly realize USB charging and USB communication functions.
Multilayer insulation protection, made of stainless steel, can withstand the harshest lead-free process and harsh industrial conditions; Can be customized
Small volume, large storage capacity (4,000,000.00 data points), using FLASH memory chip, any accident will not lose data;
Product advantages
Operation is simple and convenient. All data are managed by database.
Software operation is provided with Chinese version, Chinese version, English, Korean, Japanese and other languages;
Internal temperature above 105 ℃ low temperature protection, instrument test function and shut off the power automatically shut down;
Sampling frequency setting (0.05 seconds ~ 60 minutes);
Settings of sampling mode: direct mode and conditional mode;
Low measurement precision of + / - 0.5 ℃ (200 ℃ ~ 1370 ℃), the acquisition method can select button start time, temperature triggers the start or start;
Intelligent control, any situation is prompted by indicator light (low power, charging state, instrument reset, etc.);
存储器 Memory
| 4，000，000.00 points,
|
采样频率 Sampling frequency
| 0.05s～60 Min.
|
采样模式 Sampling mode
| 直接模式与条件模式
|
精度 precision
| ±0.5℃
|
分辨率 Resolution
| 0.1℃
|
工作电压 Run voltage
| DC3.7V~DC4.2V
|
电池 Battery
| 聚合物锂电850mAh
|
仪器功耗 Power
| ≤10mAh
|
内部最高工作温度 Max. inner runtemperature.
| 不超过105℃
|
仪器尺寸 Size
| 233mm*46mm*13mm
|
模拟功能： 选配 simulation fuction：option
| option
|
存储数据组数： Store data grouping
| 24 组
|
PWI优化功能： PWI optimization function
| option
|
>>
