US$600.00-3,000.00
|
4 Pieces
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Product Name
Vertical Drilling Tapping Machine Zs4120d Cheap Sm
Max. Drilling Capacity(mm)
20
Diameter of Column(mm)
85
Max.Tapping Capacity(mm)
M20
Transport Package
Plywood Case
Packaging & Delivery
Package Size
82.00cm * 48.00cm * 102.00cm
Package Gross Weight
165.000kg
Product Description

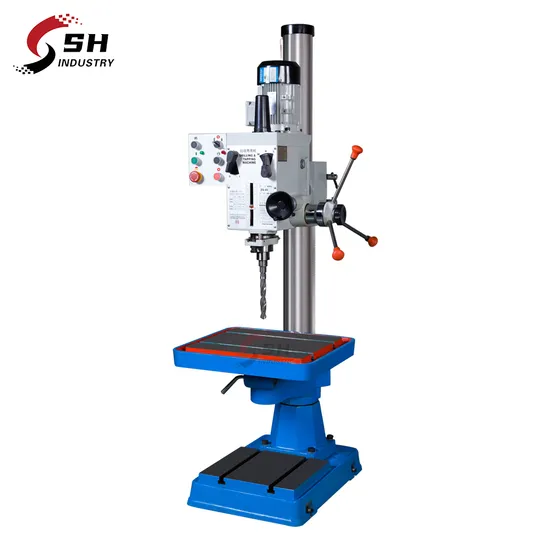

Vertical Drilling Tapping Machine ZS4120D Cheap Small Portable Drilling and Tapping Machine
Product Description
Product description:
Using famous electrical equipment ,stable feature and everlasting
Change easily between drilling and tapping
Special spindle design and arbor make sure chuck connection
Standard accessories :
Drill chuck
Taper sleeve
Arbor
Drift
Wrench
Special accessories:
vice
Safety guard
Tapping chuck
Product main technical specifications:
| Model | ZS4120D | ZS4125D |
| Max. Drilling capacity(mm) | 20 | 25 |
| Diameter of column(mm) | 85 | 85 |
| Max.tapping capacity(mm) | M20/M16 | M24/M20 |
| Spindle travel(mm) | 125 | 125 |
| Distance spindle axis to generating line (mm) | 240 | 240 |
| Max. Distance spindle nose to table(mm) | 397 | 397 |
| Max. Distance spindle nose to base(mm) | 560 | 560 |
| Spindle taper(mm) | MT2 | MT2 |
| Spindle speeds range(r/min) | 29-2150 | 29-2150 |
| Spindle speeds series(r/min) | 5 | 5 |
| Dimension of base(mm) | 280x300 | 280x300 |
| Dimension of base(mm) | 590X375 | 590X375 |
| Overall height(mm) | 1127 | 1127 |
| Motor(W) | 750/1100 | 750/1100 |
| G.W/N.W(kg) | 165/140 | 165/140 |
| Packing size(cm) | 82x48x102 | 82x48x102 |
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
>>
