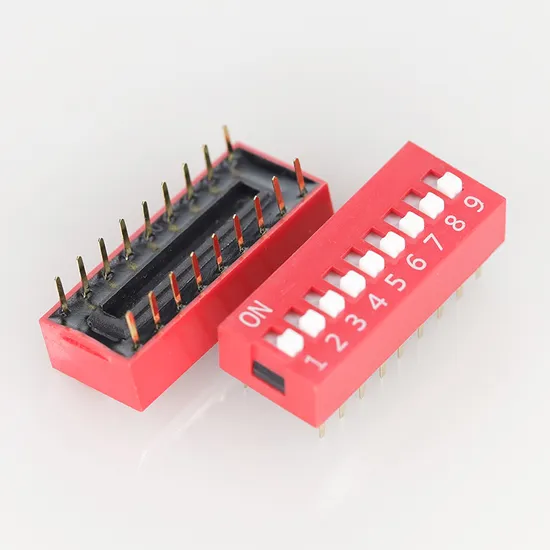

Homyet Compact Tht DIP Switch with Raised Actuator 1 to 12 Poles

Product Description

General Information

Operating Temperature	-40 up to +85 °C

Electrical Properties

IR	100 mA
VR	50 V (DC)
Contact Resistance Initial	50 mΩ
RISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties

Operation Force	800 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

Material Properties

Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Packaging Properties

Packaging	Tube

Features:
1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to install
Applications:
Include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) Instrumentation
Welding Conditions:
1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature Profile
