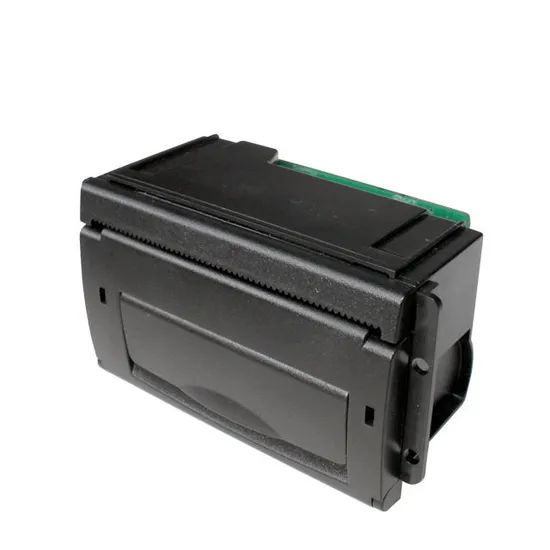

Cashino CSN-A3 58mm micro thermal panel vehicle-mounted printer

Product Description

Product Description Feature:
1.Smart appearance
2.Easy paper loading
3.Low noise thermal printing
4.Different interfaces optional
5.Front panel make paper replacement easily
6.Easily embedded to any kinds of instruments and meter
7.Compatible with APS SS205-CH
Product Parameters

Model		CSN-A3
Print	Printing Method	Thermal line printing
	Printing Speed	Max 90mm/s
	Resolution	203dpi(8dots/mm)
	Effective printing width	48mm
Character	Character set	ASC II,GB2312-80(Chinese)
	Fonts	ANK:9*17,12*24,GBK:24*24
Memory	Flash memory	20K bytes
	RAM	128K bytes
Paper Spec.	Paper Type	Thermal paper
	Paper Width	58mm
	Paper thickness	55-90μm
	Paper diameter	23mm(Max)
Sensor		Paper end, cover open
Reliability	TPH	50km(12.5% print ratio)
Barcode	1D	UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
	2D	QR code
Command		Compatible with ESC/POS command set
Driver/SDK		Windows Driver,Linux Driver,OPOS Driver
Interface		RS232/TTL/USB
Power		DC5V-9V/12V
Environment	Environment	Operating:0°C~50°C Storage:-20°C ~ 60°C
	Humidity	Operating:10%RH~80%RH Storage:10%~90%RH
Dimensions	Outline Dimension(W*L*H)	79x44x48mm
	Installation Port Size	71.3x44.8mm
	Insert Depth	40.5/43.5mm
	Color	Black

Company Profile
Certifications
Packaging & Shipping
FAQ Q: We would like to customized our own brand,is that ok?
A:Yes, we accept OEM/ODM with your brand or your design.But we will require a MOQ for different models.
Q: Can you offer driver/SDK for the printers?
A: Yes,we can provide driver for Windows/Linux/OPOS, and SDK for Android/ios.
Q: What is the warranty for your products?
A:12 months for finished printer, and 6 months for thermal printer head of the finished printer.
Q: What is your lead time?
A: It depends on different models.Usually we have a small stock. If no stock,our lead time varies from 3 to 30 days.
Q: What is your MOQ?
A:Normally our MoQ is 100pcs, but we can accept a trial order.We have the different MOQ requirement for OEM/ODM service.
Q: What is your trade term?
A: Generally our trade term is FOB Xiamen.Special cases,negotiable.

---
