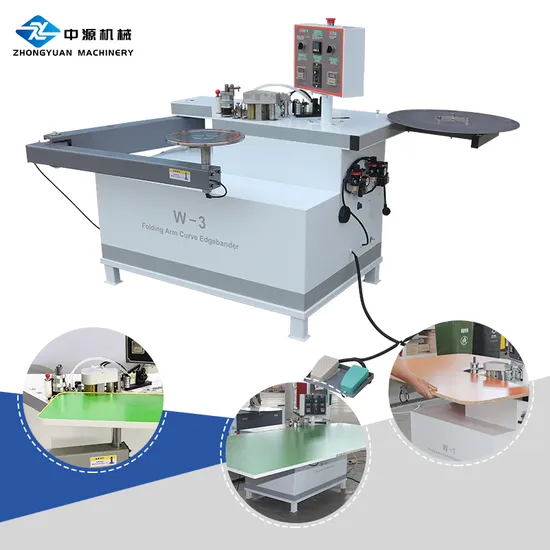

W3 Automatic Glue Removal Curve Edge Banding Machine

Product Description

Product Parameters
W Stacked Arm Curve Edge Banding Machine:
1.Stacked arm design and rotating structure are more flexible and efficient than table top curve banding, especially when banding large curved edges, its advantages are better reflected.
2.Glue application: Grid-shaped glue application roller, even glue application, firm adhesion, large-capacity glue pot.
3.Fitting wheel: Add 0.5mm according to the width of the edge banding strip, and adjust left and right to prevent the edge banding strip from deflecting up and down.
4.Positioning of the small white shaft: Keep the suction cup parallel to the small white shaft. Remove the small white shaft and the suction cup can be directly fixed, making it easy to band the small plates.
5.Stepless speed adjustment: Used to adjust the button to set it arbitrarily within the maximum value, accurate and shockproof, protect the power supply, and prevent misoperation.
6.Control panel: using Delixi electrical components, digital display temperature controller, timer belt break, electronic speed regulator.
7.Dual cylinder control: control knife and tape feeding, high-quality knife, fast cutting without burrs.
8.Double pedals: The left pedal controls the suction force of the suction cup, and the right pedal controls the edge banding, tape feeding and breaking.
9.Height-limiting column: The height is adjustable to prevent the edge banding strip from moving up and down.
What's new in W3
1.Automatic glue removal, the laminating wheel is not easy to glue.
2.With the auxiliary pressing wheel, the edge banding strip is pressed twice to increase the bonding firmness.
3.Hot air assists to increase the adhesion between the edge strip and the board.

Model	W1	W2	W3
Supply voltage	220V/50HZ	220V/50HZ	220V/50HZ
Total power	1.4KW	1.4KW	3.4KW
Air pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Motor power	0.18KW	0.18KW	0.18KW
Thickness of sealing strip	0,4-2mm	0,4-2mm	0,4-2mm
Width of sealing strip	8-50mm	8-50mm	8-50mm
Auxiliary pressure roller	x	x	√
Hot air auxiliary	x	x	√
Automatic cleaning	x	x	√
Weight	145kg	210kg	240kg
Packing size	970*850*1100mm	1300*1120*1250mm	1305*1125*1250mm

Detailed Photos
Product Application

Company Profile

Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
