330FT (100m) USB HDMI Over Cat5e / CAT6 Kvm Console Extender

Product Description

330ft (100m) USB HDMI Over CAT5e / CAT6 KVM Extender - 1080p Uncompressed HD Video - IT Grade KVM Console Extender for PC

Brand	Caratar-Tech
Material	Unspecified
Item Dimensions LxWxH	6.9 x 4.4 x 1.2 inches
Mounting Type	Extend
Specification Met	No, Certified frustration-free
Control Method	Remote

About this item Power a large HDMI display from a distance with uncompressed 1080p video Operate a single system or KVM switch remotely through KVM console extension Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling Uncompressed 1080p and 1920x1200 HD video extension Extend up to 330 ft. (100m) over a single Cat5e / Cat6 cable HDCP, CEC and Lip Sync pass-through support OS independent - no software or drivers required 3 USB 2.0 ports with transfer rates up to 30Mbps Operate a PC from up to 100m away, with uncompressed 1080p HDMI video and USB keyboard / mouse

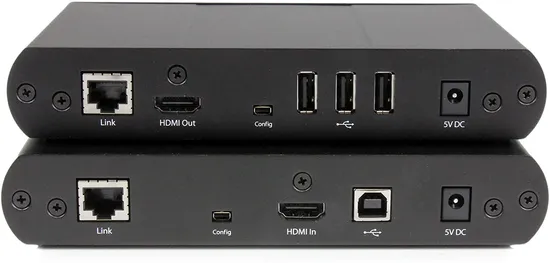

The USB HDMI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Features: Use single UTP/FTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute HDMI cable to extend longer transmission distance
Support 1920x1080@60Hz resolution transmission via UTP/FTP cable up to 120 meters
With IR pass though, the playback device can be remotely controlled at the receiving end via UTP/FTP cable
By transmitting keyboard and mouse data via UTP/FTP cable, it is easy to control PC remotely
Support point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to multipoint administration
Via router or network switch, it is available to send data from up to 16 transmitters to 253 receivers Packing List: Specification

HKE12MMA20	120M HDMI KVM Many to Many Over IP Extender w/ IR
Functionality:
Over IP	Yes
IR pass through	Yes
Resolution	1920x1080@60Hz
Input	TX*: 1*HDMI Type A
	RX*: 1* RJ45, 2* USB Type A, 1* 3.5mm AUX (For IR receiver)
Output	TX: 1* RJ45, 1* 3.5mm AUX (For IR transmitter) 1* USB Type B
	RX: 1* HDMI Type A
ESD protection	Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material	Aluminum Alloy
Power supply	DC 5V 1A
Operating/Storage temperature	0 to 70 degree/-40 to 85 degree
Operating Humidity	10 to 90% RH
Product	Dimension	103(L) x 93(W) x 29(H) mm
	Weight	TX:159g RX:160g
Item	Dimension	245(L) x 135(W) x 90(H) mm
	Weight	711g
Carton	Dimension	515(L) x 285(W) x 470(H) mm
	Quantity	20PCS
	Total Weight	15.07kg

---
