Advanced Zmde CNC H Steel Beam Drilling Machine for Precision Manufacturing

Product Description

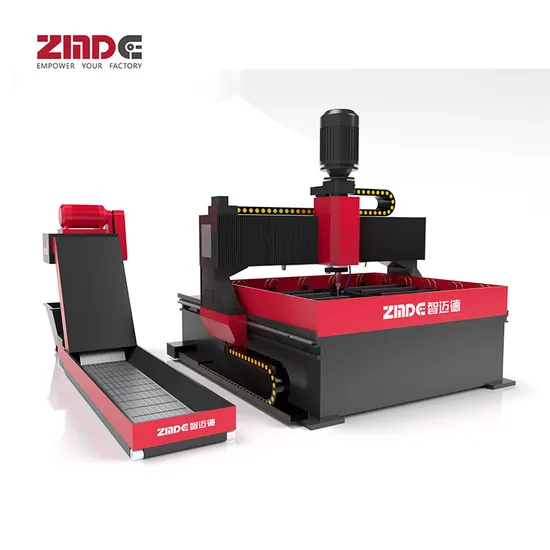

ZMDE CNC H Steel Beam Drilling Machine

>Cost-effective and Efficient Equipment <
1. Crafted from robust materials, the equipment boasts a low failure rate, significantly reducing maintenance costs. Key components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-leading brands;
2. Features a CRT display for automatic chip removal, drastically cutting down on manual cleaning time and costs;
3. Ensures high precision, delivering superior workpiece qualification rates and reducing consumable expenses.
>User-Friendly Operation, Exceptional Productivity <
1. The intuitive human-machine interface is clear and visual, enabling the generation of automatic machining programs;
2. CNC and PLC controllers ensure accurate positioning;
3. Hydraulic clamps secure workpieces, and operators can control the process via a convenient and labor-saving foot switch;
4. Equipped with 12 high-speed hydraulic clamps distributed around the table, allowing simultaneous clamping of up to four groups of workpieces;
5. Small workpieces can be clamped at the four corners of the working table, significantly shortening the production preparation cycle and boosting efficiency;
6. Optimized clamping of small workpieces at the table's corners accelerates the production preparation period, enhancing overall efficiency.
> Superior Quality and Versatile Applications <
1. Critical components like the gantry, column, and table are constructed from durable materials, with the main machine weighing up to 6300 kg;
2. Applicable across a wide range of industries, serving as essential equipment for connecting plate processing;
3. Accommodates a broad spectrum of drilling diameters, ranging from 12 to 50 mm.
> Adaptable to Various Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces;
2. Suitable for small-batch, multi-species workpiece production, capable of processing plates in various shapes such as rectangular, round flange, and polygonal. It can simultaneously handle two or four different specifications of plates;
3. Enables stack production of multiple layers of thinner sheets, with stacks up to 100 mm drilled holes;
4. Utilizes upper computer software to automatically manage processing start and end points, allowing for the drilling of through holes, blind holes, step holes, and chamfering hole ends.
> Fully Automated Production Process <
1. Features integrated line board for high automation, with automatic positioning based on the drilling program;
2. Adjusts optimal feeding volumes according to different hole diameters;
3. Capable of automatic, continuous processing of large hole diameters and one-time processing and forming;
4. Equipped with an automatic chip removal function for enhanced efficiency.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands as a beacon of innovation in the realm of assembly building intelligent equipment. As a high-tech enterprise, we seamlessly integrate research and development, manufacturing, sales, and service. Nationally recognized as a 'small giant' in specialization and innovation, our core industry is rooted in steel structure assembly building intelligent industrial mother machines and the Industry IoT.Our expertise also extends to advanced intelligent control systems, encapsulated in two primary sectors.
Strategically headquartered in Lingang New Area, Pudong New District, Shanghai, our base is an epicenter of cutting-edge innovation. Spanning 32,000 square meters, it houses the Research Institute of Artificial Intelligence for Assembled Buildings. Here, we focus on the management and pioneering research into high-end technologies encompassing Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in Weicheng District, Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines. These machines are specialized for steel beams and walls of assembled buildings, pushing the boundaries of modern construction.Our commitment to excellence ensures that we consistently deliver state-of-the-art solutions for the construction industry's evolving needs.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
