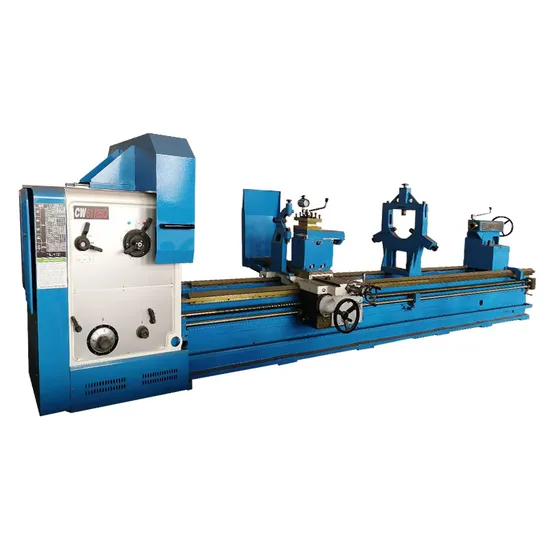

CW61100Q Heavy duty horizontal lathe machine for metal cutting

Product Description

Feature
This heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .

Main SpecificationStandard Accessoires

Swing over bed	mm	1000
Swing over carriage	mm	680
Center distance	mm	1500/2000/3000/4000/5000
Spindle hole	mm	Φ105
Spindle front taper	mm	φ120 φ140 MT6
Spindle speed	r/min	18 kinds 8.5-800
Longitudinal feed	mm/r	64kinds 0.05-24.3
Range 1:1	mm/r	0.1-1.52
Range 16:1	mm/r	1.6-24.3
Change gear micro feed	mm/r	0.05-0.76
Feed Horizontal: longitudinal		1: 2
Rapid movement	mm/min	4000
Leadscrew pitch	mm	12(metric)1/2"(inch)
Metric thread	mm	50kinds 1-240
Inch thread		26kinds 14-1 t.p.i
Module thread	mm	53kinds 0.5-120
Pitch thread		24kinds 28-1 DP
Lower cariaage travel	mm	315
Upper carriage travel	mm	200
Tailstock travel	mm	250
Tailstock taper		MT6
Main motor	kW	11
Rapid motor	kW	1.1
Coolant pump	w	90
Bed width	mm	600
Guideway hardness		600RC52
Max loading weight	kg	2500

4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
