US$10,288.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Knee-and-Column Milling Machine
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Spindle Speed Range
12steps
Horizontal Spindle Speed
60-1750rpm
Vertical Spindle Speed
58-1800
Mill Head Swivel
360 Degree
Distance Spindle and Table
400mm
Transport Package
Wooden Case
Specification
CE, ISO9001
Production Capacity
100sets/Month
Product Description

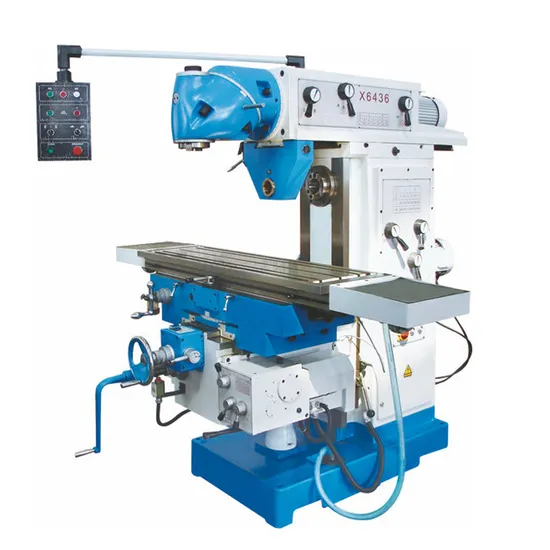

Universal swivel milling head mechanical feed horizontal and vertical ram type milling Machine X6436
Universal swivel head milling machine Feature: The machine is with universal milling head,it can swivel 360 degrees. The table can swivel left and right side 35 degrees.° The machine can automatic feed on three axes controlled through one gear box. The ram is movable forward and backward. The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously 1600MM,X 1300MM The machine is equipped with operation panel which is convenient for the operator.
Specifications:
| Model | | unit | X6436 |
| TABLE | | |
| Table size | mm | 1600X360
|
| T slot | no | 5 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 95 |
| Max. load of Table | kg | 400 |
| swivel of table | degree | ±45º |
| machining range :- | | |
| table Longitudinal travel(manual/auto) | mm | 1300 |
| table Cross travel (manual/auto) | mm | 290/280 |
| table Vertical travel(manual/auto) | mm | 390 |
| MAIN SPINDLE :- | | |
| Spindle taper | | ISO50 |
| spindle speed /step -- Vertical | rpm | 58-1800/12 |
| --Horizontal | rpm | 60-1750/12 |
| swivel angle of swivel head | degree | 360º |
| Distance between spindle axis and table surface. | mm | 0-400 |
| Distance between spindle axis and surface of ram | mm | 175 |
| arm travel | mm | 500 |
| FEEDS :- | | |
| Longitudinal/cross feed | mm / min | 22-420(X)/22-393(Y) |
| Vertical/step | mm/min | 10-168(Z) |
| Longitudinal/cross rapid speed | mm / min | 1290(X),1205(Y) |
| Rapid Traverse vertical | mm/min | 513(Z) |
| POWER :- | | |
| main motor | kw | 4(H./V.) |
| --others | | |
| overall dimension | cm | 198x202x190 |
| N/W,G/W | kg | 2200/2400 |
Standard accessories:
| | Name | Model | Qty |
| 1 | Machine | | 1 |
| 2 | Milling chuck | ISO50 (8 pieces) | 1 |
| 3 | Inner hexagon spanner | 5, 6, 8, 10, 12, 14 | each 1 |
| 4 | Wrench | S21-24, S27-30 | each 1 |
| 6 | Draw bar | M24(vertical, horizontal) | each 1 |
| 7 | Middle-sleeve | 7:24 ISO50/MS4 | 1 |
| 8 | Nut | M16 | 1 |
| 9 | Washer | 24 | 1 |
| | | 16 | 2 |
| 10 | Milling arbor | ISO50-φ27
ISO50-φ32 | each 1 set |
| 11 | Shell end milling arbor | 7:24 ISO50-φ32 | 1 |
| 12 | Operation manual, packing list , test list | 1 |
Optional accessories:
milling chuck
DRO
clamping kits
vice
dividing head
